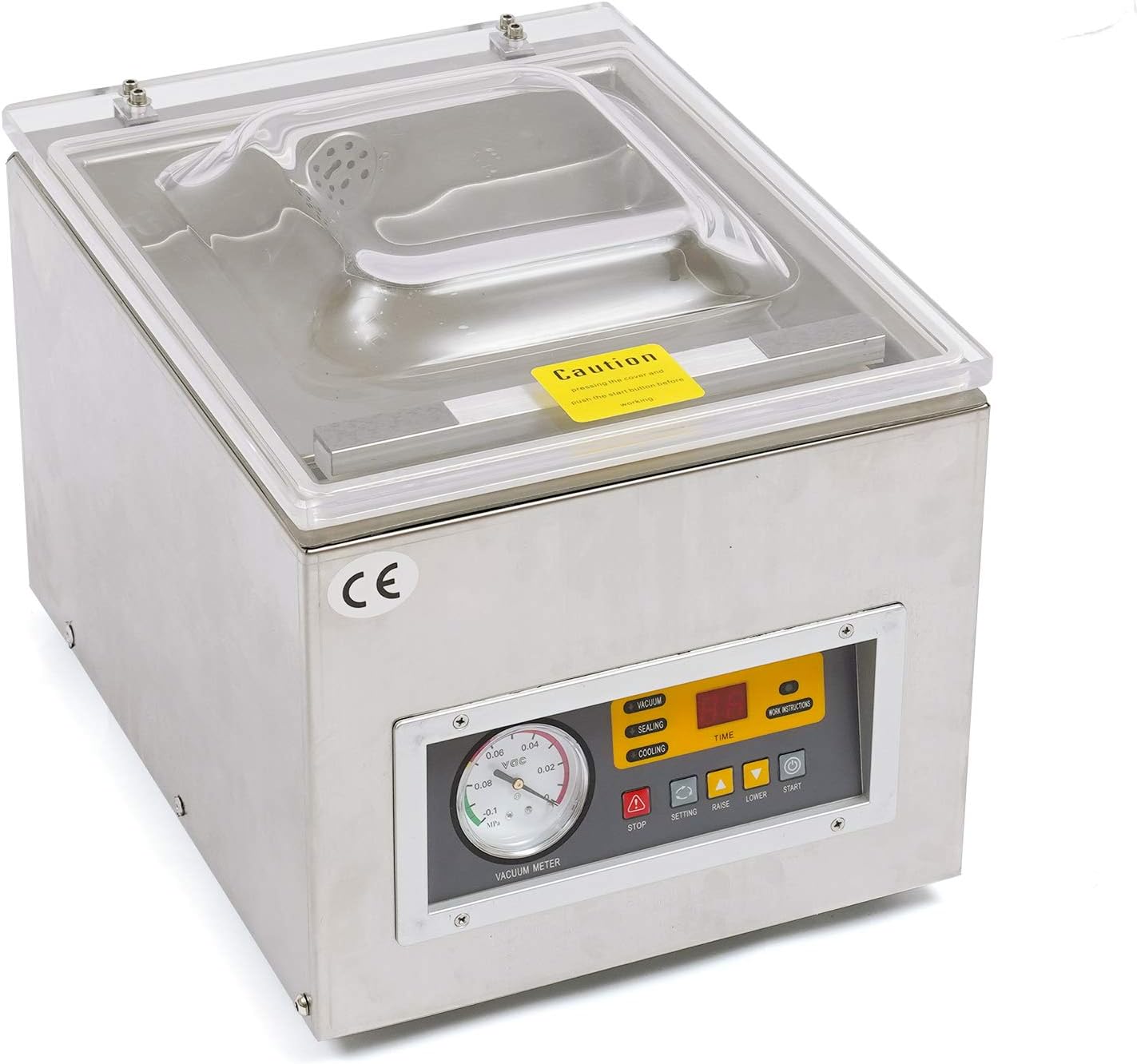

About this item

• ✔【Powerful Vacuum Packaging Machine】With a copper wire pump and 1Kpa minimum chamber pressure, this machine has strong suction and low energy consumption, ensuring the freshness of your food and efficient vacuum sealing. Multiple heat-sink holes on the machine side effectively dissipate heat to ensure continuous work without overheating, thus extending its service life.
• ✔【Strong Capacity】It supports the bag with the maximum size of 11.8*10.23inch and you can put as many bags as possible once (less than the sealing tape size).
• ✔【Simple Appearance】The vacuum chamber without a power connection gives it a more beautiful look, along with the smooth lines and clear lid, making the machine look simple but stylish. The operation panel with clear letters, marks, work instructions, and a vacuum meter display allows for simple and convenient automatic control operation. And there is an English manual for your reference.
• ✔【Space-saving】Putting the vacuum-sealed food into the refrigerator saves space, protects the refrigerator, and avoids food waste. And this machine features a small volume and is lightweight, so you can place it on the countertop without taking up much space.
• ✔【Easy to Clean】Because of its stainless steel shell, you can wipe the dirt from this machine with a wet cloth.

How to Use

1. Open the rear panel. (Any type of vacuum oil is fine, add it to half of the display on the oil window.)

2. Add vacuum pump oil into the vacuum pump.

3. Set the vacuum time, sealing time, and cooling time (depending on the specific bag and material) according to the red light, and use the setting key to switch and raise and lower key to adjust.

4. Press the setting button again to set the machine to ED state.

5. Put the items in the vacuum chamber, clamp the seal, close the lid, and press the start button to start the vacuum seal.

6. After the operation is over, the lid will automatically pop open.

Specifications

Model: DZ-260S

Color: Silver

Shell Material: Stainless Steel, Acrylic

Treatment: Non-stick Coating

Operation Mode: Automatic

Number of Sealing Tape: 1

Power Source: Corded Electric

Plug: US Standard

Voltage: 110V/60HZ

Power: 120 W

Noise: <80dB

Air Inlet Diameter: 6mm/0.23inch

Current: 5A

Exhaust Rate: 5.5L/s

Packing Speed: 1~4 pcs/min

Minimum Absolute Pressure in the Chamber: ≤1KPa

Suction Speed: 2 CFM

Power Cable Length: 1.2m/3.9ft

Power Cable Size: 4mm²

Max. Applicable Bag: 30*26cm/11.8*10.23inch

Sealing Tape Length: 260mm/10.23inch

Sealing Size: 260mm*10 mm/10.23*0.4inch

Chamber Size: 33*27.5*5cm/12.9*10.7*2 inch

Chamber Inner Size: 27*26*5cm/10.63*10.23*2inch

Machine Size: 40*31*28cm/15.75*12.2*11.02inch

Package Size: 41*32*29cm/16*12.2*11.4 inches

Net Weight: 21kg/46.3lbs

Gross Weight: 23kg/50.7lbs

Package Included

1* Vacuum Packaging Machine

1* Power Cable

1* Allen Key

1* Heating Wire

1* High-temperature Cloth

1Pot* Lubricant Oil

1* English Instruction
