About this item

• Large Capacity: This 12Gal double-tier drying oven, combined with 2 adjustable trays that can bear a weight of 33 lbs each, allows you to dry more materials or items at once, making a large number of high-performance materials for the laboratory, thereby saving time and improving efficiency.
• Easy to Operate: You only need to press the button below the display screen to set the temperature and time, which is more convenient and fast, eliminating the short board of touch screen method that cannot get water on your hands.
• Intelligent Temperature Controller: The digital display PID temperature controller has functions such as timing, over-temperature alarm indication, temperature deviation correction, and temperature self-tuning control.
• Good Material: The shell is processed and formed with high-quality cold plates treated with spraying technology. The stainless steel inner liner can withstand high temperatures well, ensuring stable and long-term operation.
• Uniform Heating: It can set the temperature to a maximum of 572°F (minimum 18°F higher than room temperature), adapting to various needs such as drying, heating, reheating, etc. The air circulation promoted by natural convection, combined with a separate fan switch, makes the material dry faster and more evenly.

Specifications

Model: 101-0AB

Material: Cold Plate, Stainless Steel

Color: White, Green

Style: Modern

Surface Treatment: Spraying

Assembly Required: No

Door Style: Side-open Door

Control Type: Button Control

Power: 1000W

Voltage: 110V

Capacity: 45L/12Gal

Temperature Range: RT+10°C～300°C/RT+18°F～572°F

Tray Maximum Loading: 15kg/33lbs

Tem. Resolution: 0.1°C/0.18°F

Tem. Fluctuation: ±1°C/±1.8°F

Gross Weight: 36.35kg/80lbs

Net Weight: 32.25kg/71lbs

Tray Spacing: 6cm/2.36in

Tray Size: 32.5*33.5cm/12.8*13.18in

Window Size: 19*24.5cm/7.48*9.64in

Product Inner Size: 34*34*35cm/13.38*13.38*13.78in

Product Size: 46.5*65*49.5cm/18.3*25.6*19.48in

Package Size: 58*60*73.5cm/22.83*23.62*28.93in

Package Included

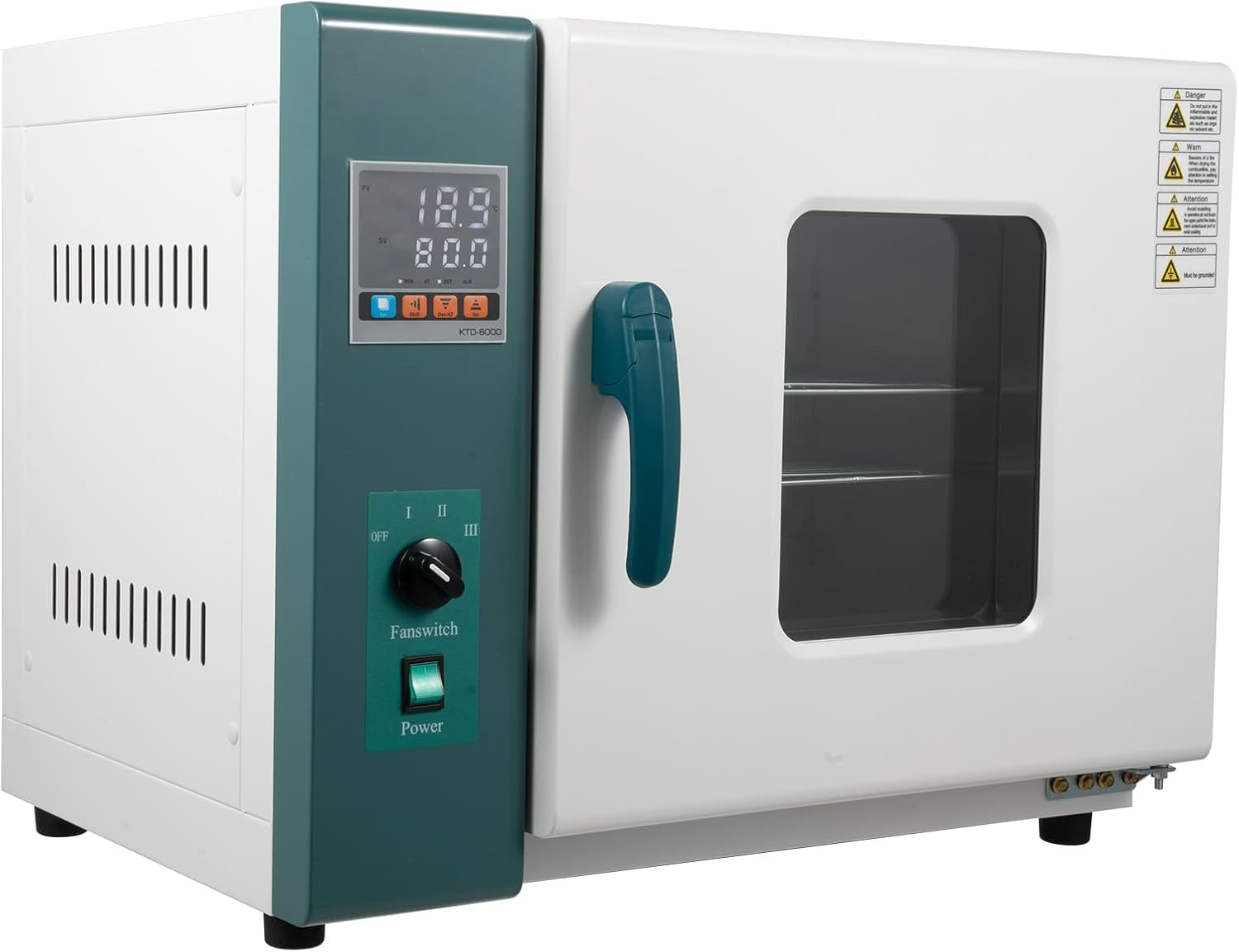

1*Horizontal Electric Blast Drying Oven

1*English Manual

All Accessories for Assembly

Notes

1. Please carefully read the manual and strictly follow the precautions to have a better experience.

2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
