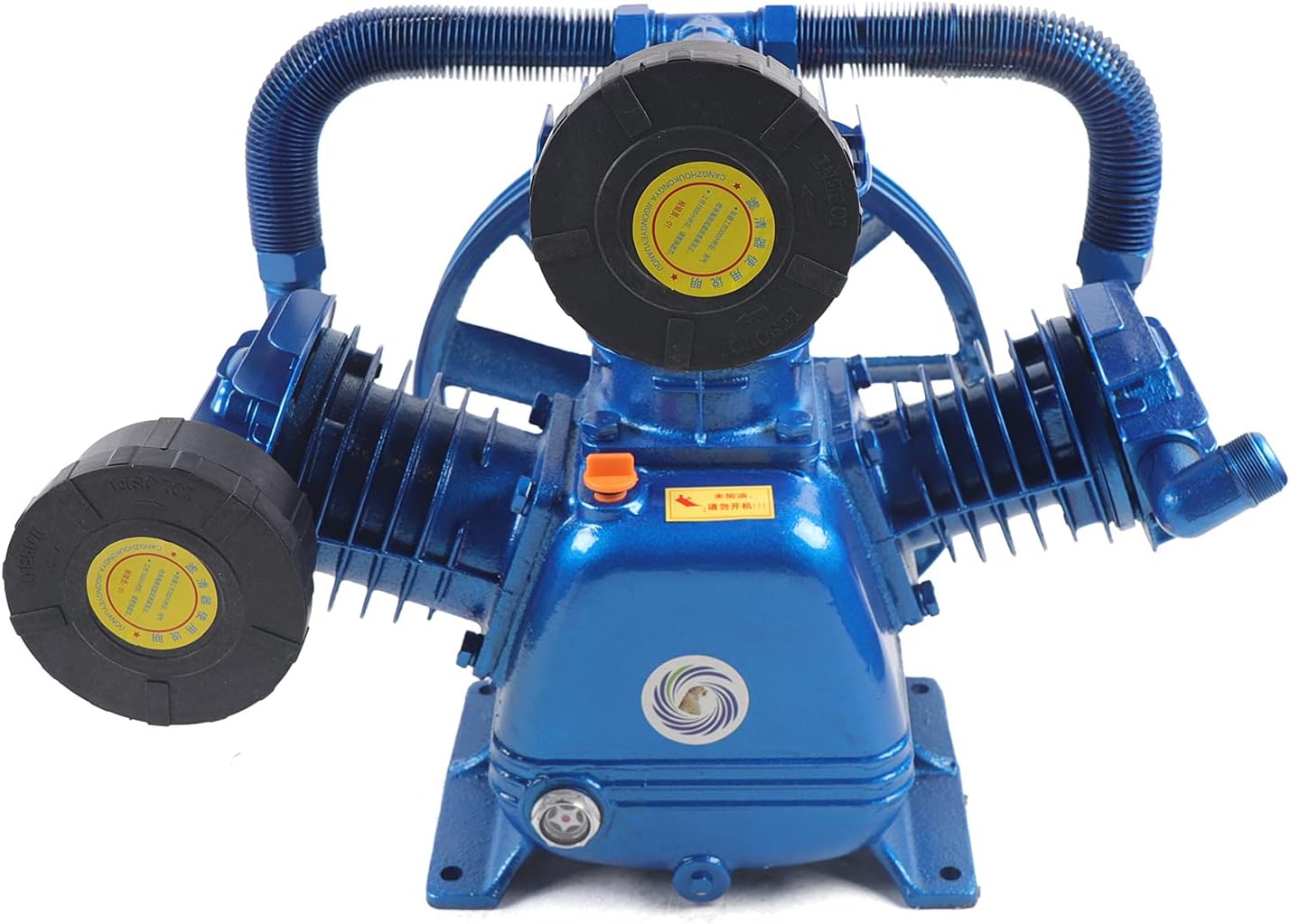

175PSI 10HP Replacement Air Compressor Pump, W Style 3 Cylinder Air Compressor Pump Head, Low Energy Consumption Air Compressor Pump Motor Air Tool, Cast Iron(Style 3)

175PSI 10HP Replacement Air Compressor Pump, W Style 3 Cylinder Air Compressor Pump Head, Low Energy Consumption Air Compressor Pump Motor Air Tool, Cast Iron(Style 3)

Low stock: 2 left

B0BXSTXDB9

color_name
$172.79
$172.79
Sale Sold out
Shipping calculated at checkout.

About this item

  • 【Air Compressor Pump Head】The air compressor pump has the characteristics of high efficiency, high precision, low energy consumption and strong versatility. Power: 7.5KW; Main wheel：350 mm/13.8inch; Pipe interface：M33×1.5 mm; Cylinder diameter：90 × 2 + 65×1 mm /3.54 × 2 + 2.6×1 inch; Compression level: secondary compression; Maximum pressure: 175psi 10HP; Installation hole distance: 252 × 170mm/9.9 × 6.7inch.
  • 【Premium Material】The pump head of this air compressor is made of aluminum cylinder head, which can supply air faster, dissipate heat quickly, not easy to damage, compact structure and lower noise.
  • 【Suction & Exhaust Valve】The hair piece is made of special valve steel with excellent strength and toughness at high temperature.
  • 【Host Belt Design】Strict balance support correction, to ensure the host running balance, strong cooling blade, better heat dissipation.
  • 【Warm Tips】Before using a new machine, you must add oil first. Change the oil for half a month for the first time, one and a half months for the second time, and change the oil for the next four to five months. Pay attention to observation at ordinary times. If it is not enough, replenish it in time. Keep the oil level in the middle of the red spot of the oil mirror.

Specifications:

Model: W-0.9/12.5

Power: 7.5KW

Main wheel：350 mm/13.8inch

Pipe interface：M33×1.5 mm

Cylinder diameter：90 × 2 + 65×1 mm /3.54 × 2 + 2.6×1 inch

Compression level: secondary compression

Maximum pressure: 175psi 10HP

Installation hole distance: 252 × 170mm/9.9 × 6.7inch

Material: Cast Iron

Package size: 56 × 36 × 45 cm/22 × 14 × 17.7inch

Net weight: 33kg/73lb

Driving mode: Pneumatic

Attention:

First, it should match the motor power

Second, the head and motor pulley must be kept in a straight line to avoid bearing displacement

Third, before using a new machine, you must add oil first. Change the oil for half a month for the first time, one and a half months for the second time, and change the oil for the next four to five months. Pay attention to observation at ordinary times. If it is not enough, replenish it in time. Keep the oil level in the middle of the red spot of the oil mirror

Fourth, the pump head will produce high temperature in the process of operation, do not touch

Packing list:

1 x Air compressor pump head
