About this item

• 🌸【 MEASURING RANGE 】X axis: 200mm~2250mm/ 7.87-88.6", Y axis: 20mm~150mm (or 340mm)/ 0.8-5.9" OR 13.4", Z axis: 20mm~150mm (or 340mm)/ 0.8-5.9" OR 13.4".
• 🌸【 HIGH PRECISION 】The high precision measuring system is designed and manufactured to improve the accuracy and convenience of detection and measurement in accident vehicle maintenance. High-precision 2D measurement system is an economical and practical point-to-point measurement tool, which is widely used in construction, machinery maintenance and other fields.
• 🌸【 HIGH QUALITY 】The telescopic measuring device is made of aluminum alloy, with very high measurement accuracy and simple operation. It can also perform 3D measurement through the adapter, and the measurement process is not limited by the site and equipment.
• 🌸【 FUNCTION 】High precision, measurement error is less than 1mm. Aluminum alloy material, high strength, small size, light weight, one person can complete the measurement independently. 3D measurements are also possible via the adapter connector.
• 🌸【 SERVICE GUARANTEE 】RudiUsoy products provide free lifetime warranty and replacement parts policy. If you have any questions about the product, the customer service department will reply to you within 24 hours.

Usage
1. When measuring small size within 900mm, no drawing measuring rule is required. Use slide rule according to the position of the ranging point.

2. The level (in the level of the level display) shows the measurement. The measurement reading is read on the slider.

3. When measuring a size of about 1800 mm, the inner rod that is stretched out and stretched is used, and measured according to the level displayed by the level. The measurement reading is read on the slider holder. Smoothly pull the ruler during the measurement (in the level of the level display).

4. The vertical ruler is directly at the measuring point, adjustable up and down, and is screwed to the vertical position to maintain the level (in the level of the level display).

Specification:
Product size (with aluminum box): 102×20×10cm/ 40.15×7.87×3.9"
Material: Aluminum alloy
Color: Blue-black
Measuring range:
X axis: 200mm~2250mm/ 7.87-88.6"
Y axis: 20mm~150mm (or 340mm)/ 0.8-5.9" OR 13.4"
Z axis: 20mm~150mm (or 340mm)/ 0.8-5.9" OR 13.4"
Package size: 104×20×10cm/ 41×7.87×3.9"
Gross weight: 3.8kg

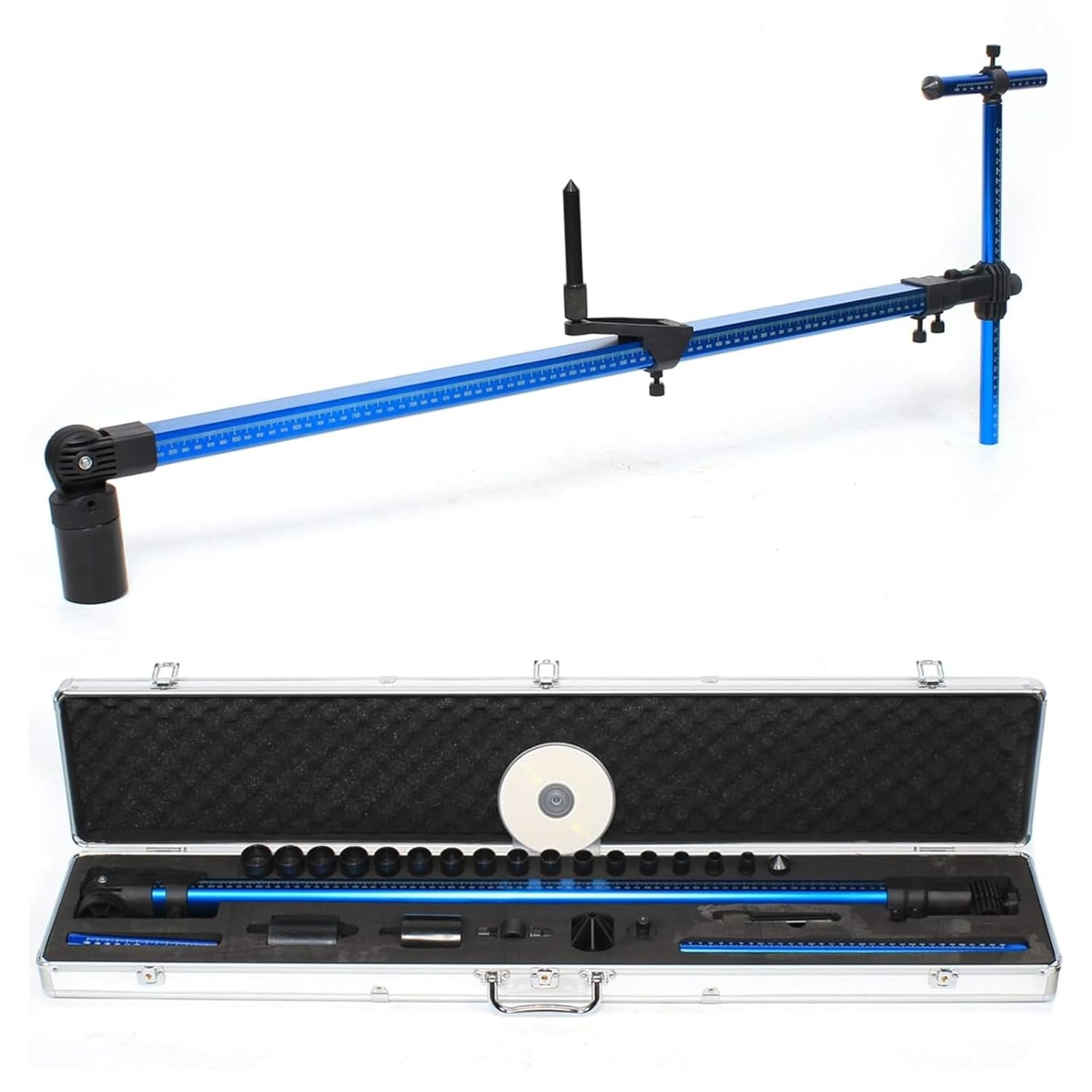

Package included
1. Main scale
2. 20-150mm scale
3. 20-340mm scale
4. Screw thread probe
5. Magnetic probe
6. Magnetic probe and lengthen base
7. 3D adapter
8. Large positioning probe
9. Longitudinal positioning probe
10. Small positioning probe
11. Size nut probe
12. English manual
