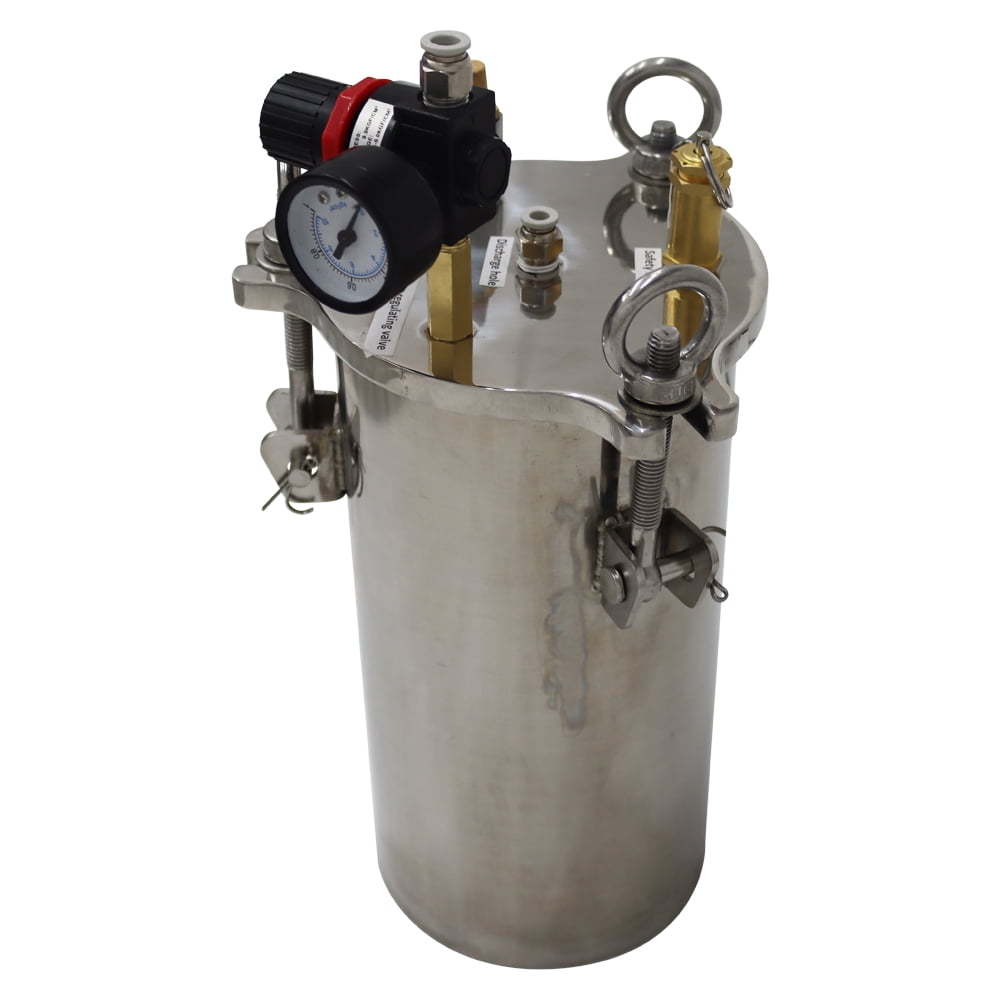

3L Stainless Steel Pressure Tank Dispenser Dispensing Storage Bucket for Glue Dispensing
3L Stainless Steel Pressure Tank Dispenser Dispensing Storage Bucket for Glue Dispensing
Low stock: 2 left
SKU:5575306150
Regular price
$127.20
Regular price
Sale price
$127.20
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description:
Pressure storage drums are suitable for storage and transportation of electronics, chemical plants, toy factories, hospitals, laboratories, etc., containing various glues, coatings, and medical sterilization.
The product structure is reasonable, welding firm, strong pressure, no leakage, corrosion resistance, easy to clean.
Parameter
Material: Stainless steel
Volume: 3L
Working pressure: 8.8-13.2Lbs（4-6KG）
Outer diameter: 5.2Inch（133mm）
Inner diameter: 5Inch（127mm）
External depth: 10Inch（255mm）
Internal depth: 9.4Inch（240mm）
Barrel thickness: 0.2Inch（4.5mm）
Barrel cover thickness: 0.5Inch（12mm）
Total height: 10.6Inch（270mm）
Steps to change the glue：
1. Turn off the air inlet switch and glue outlet switch.
2. Open the cover of the pressure bucket.
3. Open the hydraulic valve.
4. After changing the glue, cover the bucket and tighten the ring screws
5. Close the pressure relief valve.
6. Turn on the air inlet switch and glue outlet switch.
Note: This dispenser is suitable for glue with good fluidity, high viscosity glue can not be used!
Item included: 239775-TopY
INTBUYING 3L Stainless Steel Pressure Tank Dispenser Dispensing Storage Bucket for Glue Dispensing
Pressure storage drums are suitable for storage and transportation of electronics, chemical plants, toy factories, hospitals, laboratories, etc., containing various glues, coatings, and medical sterilization.
The product structure is reasonable, welding firm, strong pressure, no leakage, corrosion resistance, easy to clean.
Parameter
Material: Stainless steel
Volume: 3L
Working pressure: 8.8-13.2Lbs（4-6KG）
Outer diameter: 5.2Inch（133mm）
Inner diameter: 5Inch（127mm）
External depth: 10Inch（255mm）
Internal depth: 9.4Inch（240mm）
Barrel thickness: 0.2Inch（4.5mm）
Barrel cover thickness: 0.5Inch（12mm）
Total height: 10.6Inch（270mm）
Steps to change the glue：
1. Turn off the air inlet switch and glue outlet switch.
2. Open the cover of the pressure bucket.
3. Open the hydraulic valve.
4. After changing the glue, cover the bucket and tighten the ring screws
5. Close the pressure relief valve.
6. Turn on the air inlet switch and glue outlet switch.
Note: This dispenser is suitable for glue with good fluidity, high viscosity glue can not be used!
Item included: 239775-TopY
INTBUYING 3L Stainless Steel Pressure Tank Dispenser Dispensing Storage Bucket for Glue Dispensing
- Large flow manual valve, easy to add glue, no need to disassemble.
- The pressure barrel is made of 304 stainless steel, which is resistant to pressure and corrosion.
- Precise controllable pressure regulator. The pressure regulator is equipped with pointer pressure gauge, and the pressure in the pressure barrel is controlled visually.
- Simple and quick installation, just connect the gas pipe can be used.
- Note: This dispenser is suitable for glue with good fluidity, high viscosity glue can not be used!
Specifications
Brand: Intbuying
Manufacturer Part Number: 239775-TopY
Assembled Product Weight: 14.33 lb
Assembled Product Dimensions (L x W x H): 5.20 x 5.20 x 10.60 Inches
Brand: Intbuying
Manufacturer Part Number: 239775-TopY
Assembled Product Weight: 14.33 lb
Assembled Product Dimensions (L x W x H): 5.20 x 5.20 x 10.60 Inches
