About this item

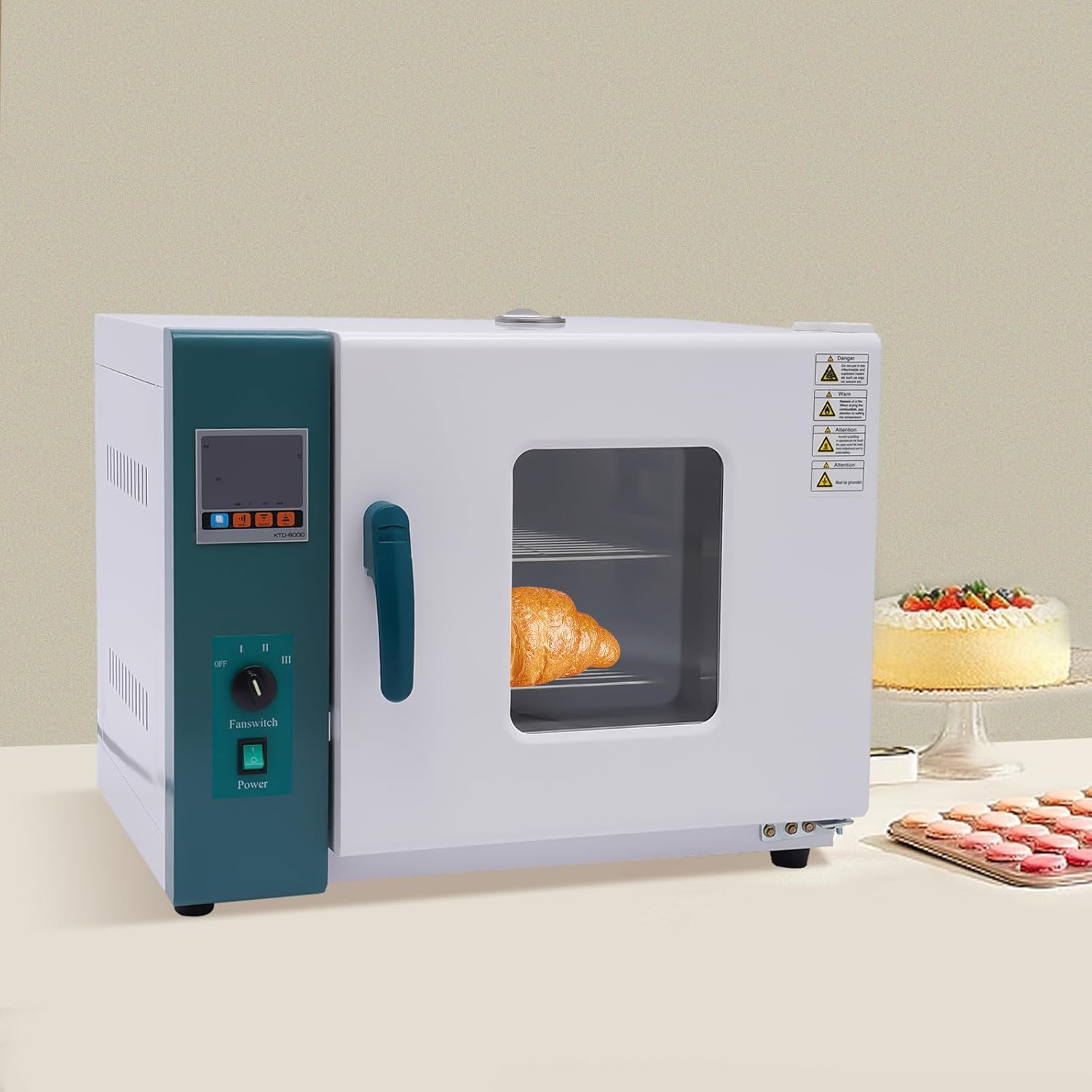

• 【HIGH QUALITY MATERIALS】This 12 gallon capacity double layer oven allows you to dry multiple ingredients or items at once. The shell is made of high-quality cold boards, and the surface is sprayed. The high-quality stainless steel lining is easy to clean, with excellent insulation performance. Natural convection circulates the air, making drying faster and more uniform.
• 【ADJUSTABLE TEMPERATURE】+10-300 ℃ adjustable temperature range, fan speed control switch, timing, temperature deviation correction, temperature control self setting, convenient for drying. This oven avoids safety hazards caused by open flame drying. In addition, overtemperature alarm indication can also improve your safety during use.
• 【SILICONE SEALING】Large double layer tempered glass observation window, convenient for observing changes in the contents inside the box. New synthetic silicone sealing tape with beautiful appearance. It can run for a long time at high temperatures. The bottom anti slip feet can effectively maintain the stability of the machine and prevent scratches on the desktop.
• 【WIDE APPLICATION】A temperature controller with digital display, with functions such as timing, alarm indication, temperature deviation correction, and temperature control self-tuning. This equipment is used for drying, baking, wax melting, and heat treatment processes in laboratories such as enterprises, schools, research institutes through a hot air circulation system.
• 【UNIFORM HEATING】This convection oven with a capacity of 45L is the preferred choice for home or commercial use. It can meet the two major functions of baking and insulation food. The hot air circulation system adopts dual duct circulation and low noise self cooling fan, ensuring uniform temperature inside the box.

Specification

Model: 101-0AB

Material: Cold Plate+Stainless Steel

Color: White

Finish Type: Spraying

Plug Type: US

Voltage: 110v, 60Hz

Power: 1500w

Capacity: 45L/12gal

Temperature Control Range: +10-300 ℃/50-572℉

Temperature Resolution: 0.1℃/32.2℉

Temperature Fluctuation: ± 1℃

Package Size: 70*57*60cm/27*22.44*23.62in

Gross Weight: 37kg/81.6lbs

Net Weight: 32.5kg/71.7lbs

Application

It is suitable for drying, baking, wax melting and heat treatment in laboratories of industrial and mining enterprises, scientific research institutes, medical and health institutions, etc.

Package Included

1*Convection Oven

1*English Manual

Notes

1. For the safety of the experiment, please install the external grounding device, and select the power supply matching the equipment to install the leakage protection device. The equipment is strictly forbidden to be used in the experiment of flammable, explosive, toxic and corrosive substances.

2. Place the equipment on a dry platform or the ground, and keep it more than 50cm away from the wall. Place the experimental items on the tray as needed, connect the power, turn on the switch, and set the required temperature according to the operating instructions of the intelligent instrument.

3. Please turn off the power when the equipment is not in use and keep it dry and clean.

4. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.

5. The temperature deviation in the working room is large after the fan is shut down. The fan should not be shut down without special circumstances.
