About this item

• [Large 5L Stainless Steel Hopper] Made of food-grade 304 stainless steel with high-temperature resistance up to 248°F, supporting 5.28qt capacity for efficient batch filling without frequent reloading.
• [4 Anti-Drip Nozzles Included] Comes with 1 long and 3 short nozzles for versatile filling of donuts, churros, pastries, and more; downward-tilting design ensures full and even distribution.
• [Precise & Adjustable Filling] Features tail screw adjustment for accurate filling control from 2g minimum with ±1g precision, ideal for custom portioning in desserts, cosmetics, or pharmaceuticals.
• [Sturdy & Secure Operation] Built with brushed stainless steel and equipped with three bottom screw holes for stable mounting on countertops, ensuring safety and reliability during use.
• [Easy to Clean & Install] Detachable design and smooth surface allow quick cleaning under running water; arrives 90% pre-assembled with clear instructions for hassle-free setup.

Application

It is suitable for paste and liquids with good fluidity (no particulate matter), such as cream filling, jam filling, paste filling, etc. in kitchens, bakeries, restaurants, cafes, dessert shops, etc. It can also be widely used in industries such as pharmaceuticals and cosmetics.

How to Install

When you get this machine, most of the parts are assembled. You just need to assemble the hopper and nozzles.

1.Assemble the connecting rod with an M6 lock nut and washer.

2.Install two positioning rods with M6 lock nuts.

3.Choose a suitable nozzle and install it on a small funnel. Then install the hopper.

4.Finally, the entire filling machine is completed and assembled.

If you want a more precise filling volume, please install the rod of the dosing device(not included), and then tighten the nut.

Specifications

Material: 304 Stainless Steel

Color: Silver

Style: Modern

Surface Treatment: Brushing, Mirror Treatment

Assembly Required: Yes

Operation Type: Manual

Number of Nozzles: 4 (1 Long Nozzle, 3 Short Nozzles)

Capacity: 5L/5.28qt

Filling Weight: Min. 2g/0.004lbs

Filling Accuracy: ±1g/0.002lbs

Applicable Max. Temperature: 120°C/248°F

Gross Weight: 7.85kg/17.3lbs

Net Weight: 7kg/15.43lbs

Product Size: 60*65cm/23.62*25.6in

Base Size: 18*10.5cm/7*4.13in

Handle Length: 14cm/5.51in

Short Nozzle Length: 7.5cm/2.95in

Long Nozzle Length: 19cm/7.48in

Package Size: 58.5*33*19cm/23*13*7.48in

Package Included

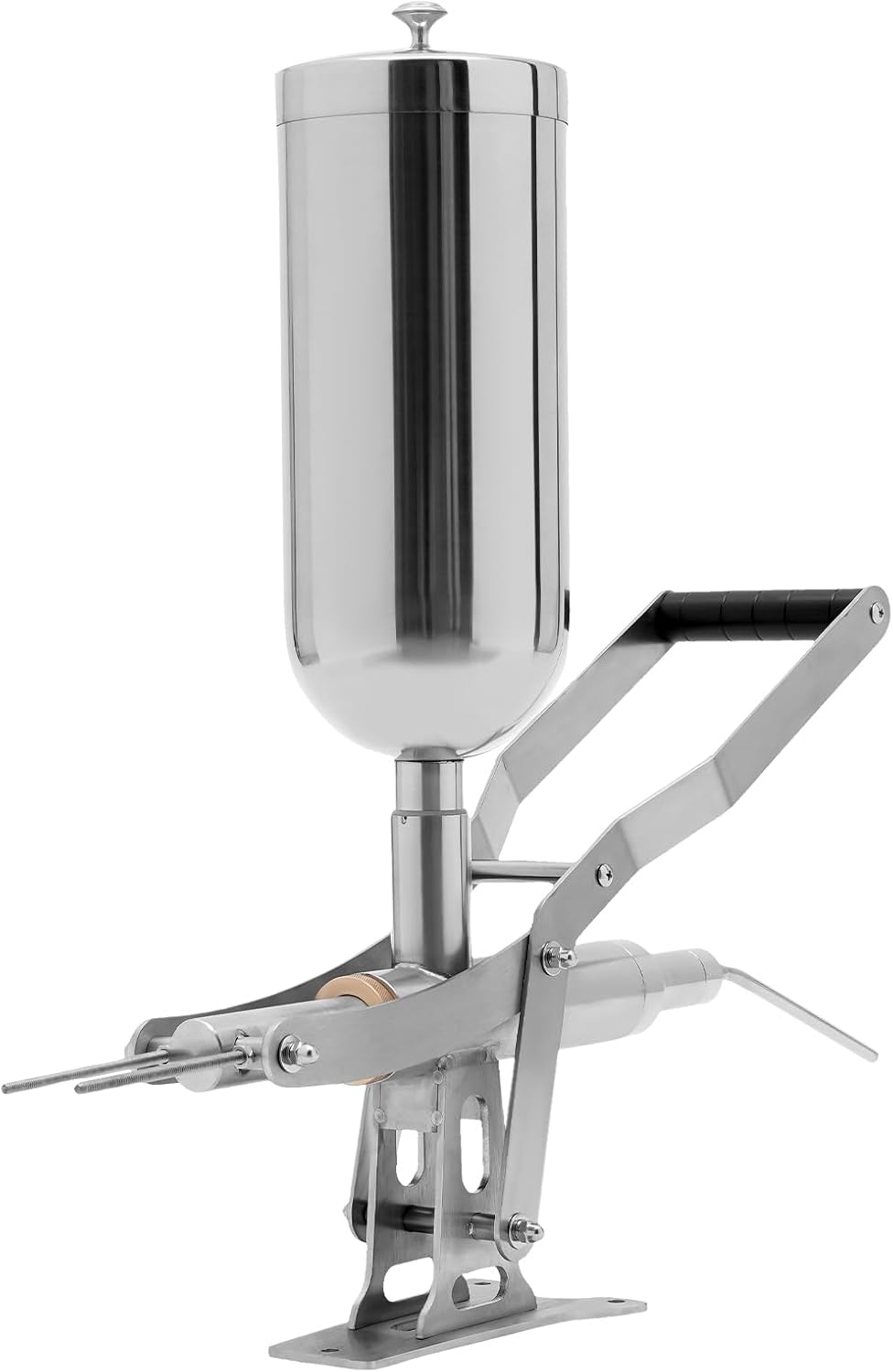

1*Manual Donut-Filling Machine

1*Long Nozzle

3*Short Nozzles

1*English Manual

All Accessories for Assembly
