About this item

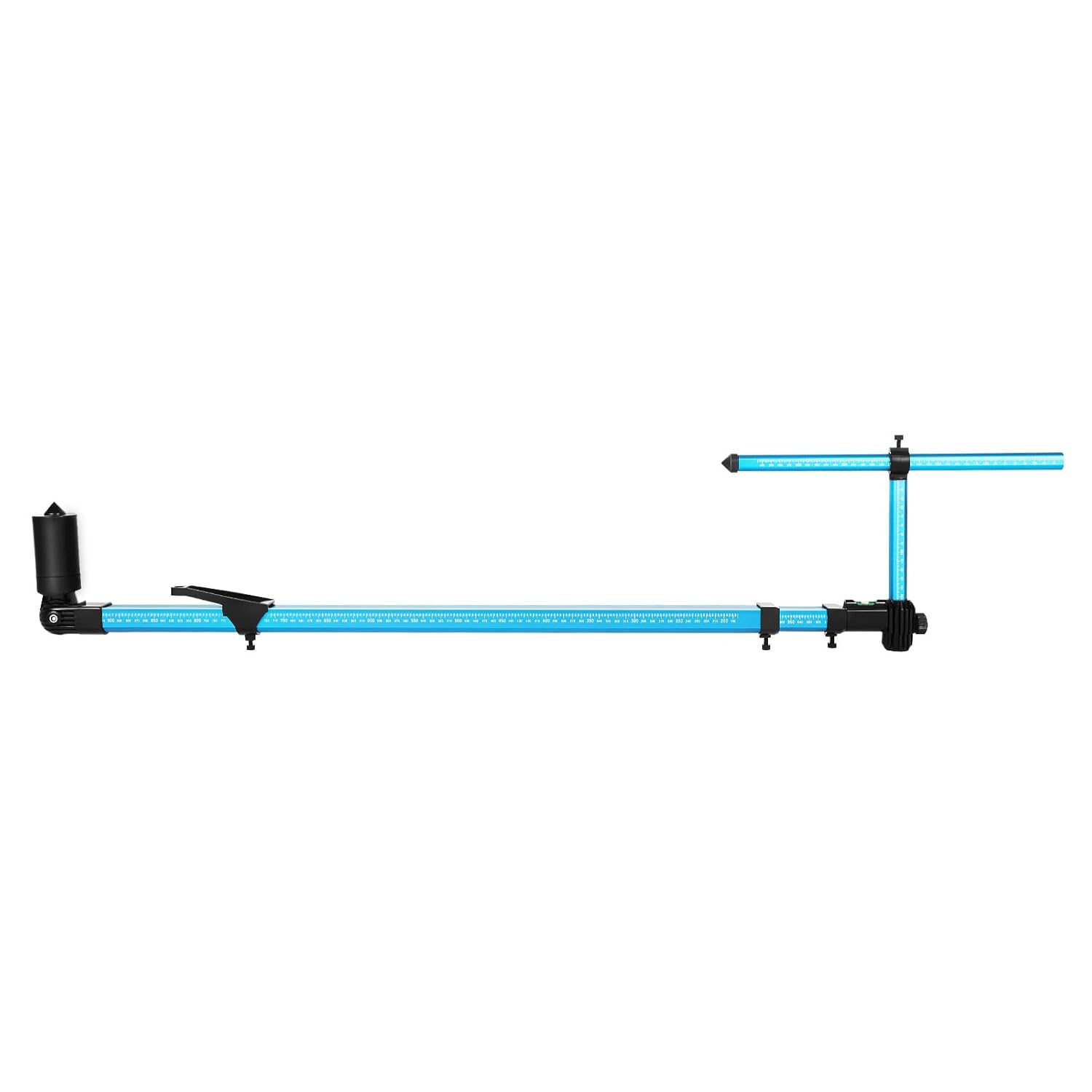

• ✅【High Precision】It is aluminum retractable measure equipment, it has a very high measurement precision, and easy to operate, it can also be 3D measuring with the adapter connectors, the measurement process is not subject to site, equipment restrictions.
• ✅【【Aluminum Alloy Material】The telescopic measuring device is made of aluminum alloy, with very high measurement accuracy and simple operation. It can also perform 3D measurement through the adapter, and the measurement process is not limited by the site and equipment.
• ✅【【Measuring Range】X-axis: 200mm~2250mm/ 7.87-88.6", Y-axis: 20mm~150mm (or 340mm)/0.8-5.9" OR 13.4", Z-axis: 20mm~150mm (or 340mm)/0.8-5.9" OR 13.4". Product size (including aluminum box): 102×20×10cm/ 40.15×7.87×3.9", packing size: 104×20×10cm/ 41×7.87×3.9", gross weight: 3.8kg.
• ✅【【Simple Operation】Easy to operate, 3D measurement can also be carried out through the adapter connector, the measurement process is not restricted by the site or equipment. Aluminum alloy material, high strength, small size, light weight, one person can complete the measurement independently, or use the adapter connector for 3D measurement.
• ✅【【Unversal Measuring Tools】The design and manufacture of high-precision measuring caliper aims to improve the accuracy and convenience of testing and measurement in accident vehicle maintenance. It can also be widely used in construction, mechanical maintenance and other fields. It is an aluminum telescopic measuring device.

Details

Smooth Edges: They improve safety during use without scratching your hands or car body.

Clear Scale: The clear scale allows you to take quick readings and facilitates your measurement work.

How to Use

1. When measuring small dimensions up to 35.43in, a drawing-measuring ruler is not required. Use the slide rule according to the position of the distance measuring point.

2. The level (level in the level display) displays the measured value. Read the measurement reading on the slider.

3. When measuring dimensions of approx. 70.87in, use the stretched inner bar and measure according to the level displayed on the level meter. The measurement reading is read on the slider holder. Smoothly pull the scale (at the level shown on the level meter) during the measurement.

4. The vertical scale is located directly at the point of measurement, is adjustable up and down, and is screwed in the vertical position to maintain the level (at the level shown on the level meter).

Specifications

Material: Aviation Aluminum

Process: Electrophoresis

Style: Modern

Color: Blue, Black

Assembly Required: Yes

Measurement Error: ±1mm/0.04in

Measurement Range:

X-axis: 200~2250mm/7.87~88.58in

Y-axis: 20~150mm (or 340 mm)/0.79~5.91in(or 13.39in)

Z-axis: 20~150mm (or 340 mm)/0.79~5.91in(or 13.39in)

Scale Length: 95cm/37.4in; 38cm/14.96in; 17cm/6.69in

Package Size: 21*102*10cm/8.27*40.16*3.94in

Gross Weight: 4.2kg/9.26lbs

Net Weight: 3.5kg/7.72lbs

Package Included

1Set * High-precision 2D Measuring Ruler System

1* CD

1* Chinese & English Manual

All Accessories for Assembly

Notes

1. Please double-check the size before ordering.

2. Please read the instructions before use to ensure that the measuring ruler can be used correctly.

3. Please note that this product is made of aluminum and should be handled with care when in use. It is strictly forbidden for heavy objects to touch.

4. Please do not come into contact with fire, rubber water, asphalt, and other corrosive substances. In case of inadvertent contact with paint and other liquids, please rinse it off immediately with a small amount of water and wipe the measuring tape clean.

5. Please note that the magnetic probe of this product will tilt after use, please do not pull it out vertically to avoid injury.
