About this item

• Our "3 Pinion Gears" Operated Design not only easy the Open and Close, but also assures higher accuracy and higher stability than 2 Pinion Gears chuck（ in most of the market）；
• Max. RPM 6000; Accuracy: 0.0004"-0.0006" TIR (Body accuracy of D1-4 5C chuck within 0.0002"; and actual usage accuracy:0.0004"-0.0006", because customers need to consider the "actual accuracy of each 5C collet" and "actual runout of the lathe spindle";

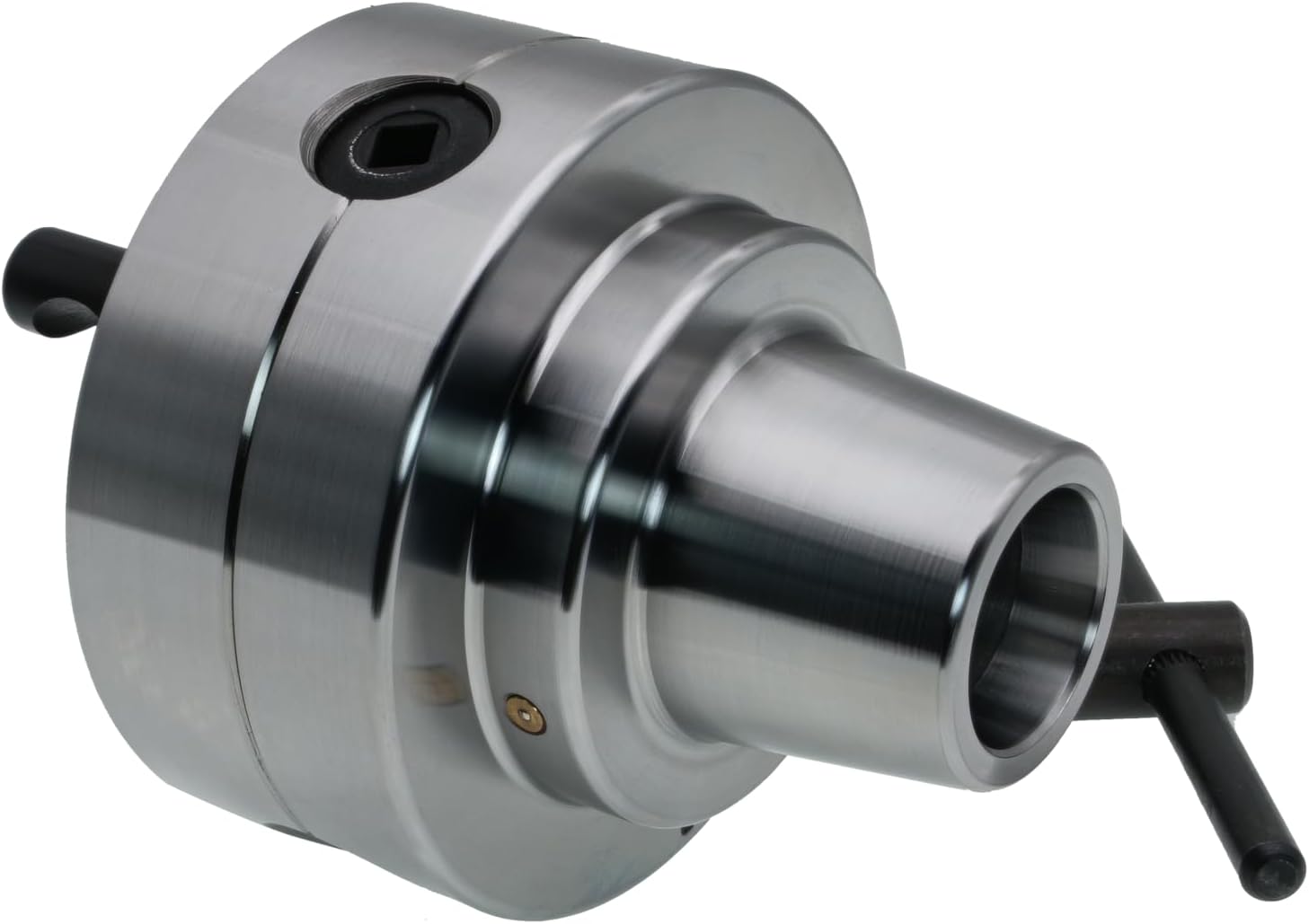

• D1-4 Mounting 5C collet chuck intended for precision workholding applications on lathe(spindle nose:D1-4); Can use any 5C collet ranging from 1/16" to 1-1/8" capacity; Outside Diameter: 5"; Customers Don't need to do any work when received, just mount it on your machine spindle and go;
• D1 - 4 Cam Lock Mounting (3 Pins 0.625" Diameter) ;Scroll & Pinion Precision Machined and Hardened;
• We are manufacturer,for various specifications 5c collet chuck,we have over 20 years manufacturing experience.

1, Each D1-4 5C COLLET CHUCK by precision pneumatic testing and meets product accuracy standards; But in actual use of this product, customers need to consider "actual accuracy of each 5C collet", and "actual runout of the lathe spindle";
2,Our "3 Pinion Gears" Operated Design not only easy the Open and Close, but also assures higher accuracy and higher stability than 2 Pinion Gears chuck in most of the market;
3, For D1-4 5C COLLET CHUCK, we have over 20 years of manufacturing experience, please trust your choice,thank you.
