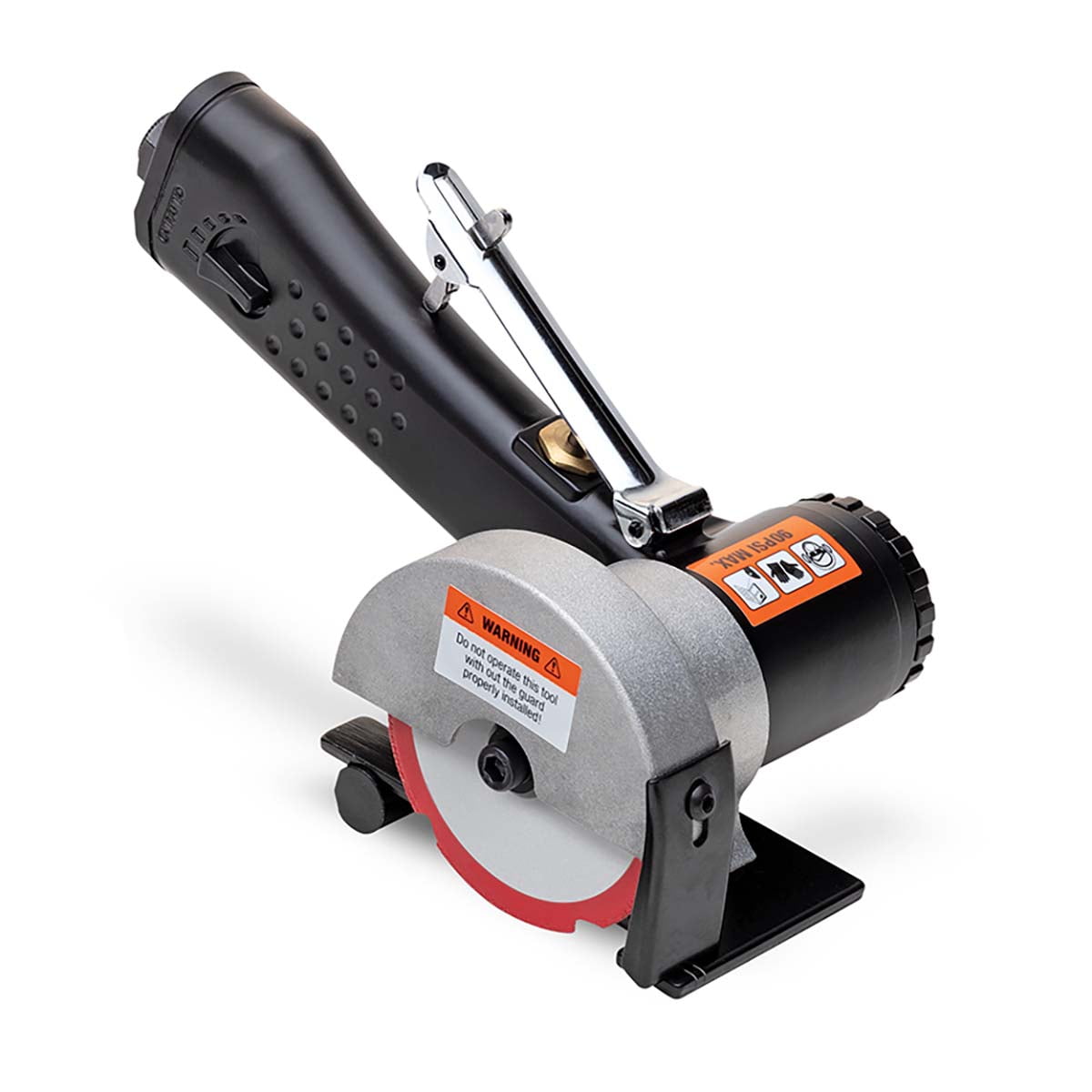

Eastwood Elite Panel Metal Cutting Saw with Diamond Blade

The Eastwood Elite Panel Cutting Saw is designed for creating extremely high accurate cuts in metal on the inside or outside of your scribe line. The heavy-duty die-cast blade guard integrates a unique indexed handle rotation system, allowing for the handle to rotate around the base up to 120°. This adjustment allows for access in areas where a standard fixed-handle metal saw cannot reach. The aluminum base plate is precision laser-etched with blade alignment marks to allow the user to make accurate cuts on the inside or outside of a scribe line. The Panel Saw is also easily capable of starting with a plunge cut, making a scroll cut, or cutting through multi-layered panels. The Quick-set depth gauge allows user to accurately set blade depth to cut just top panel not damaging lower panel for repair.

Specifications

Air Consumption: 4 CFM
Operating Air Pressure: 90 psi
Free Speed: 17,000 RPM
Horsepower: 0.5
Maximum Cutting Depth: 1/4" (6.3mm)
Cutting Wheel Size: 3" (Included)
Arbor Size: 3/8" (9.5mm)
Air Inlet: 1/4" FNPT
Housing Construction: Aluminum with Cushion Grip
Wheel Guard Construction: Aluminum Die Cast
Base Plate: 5/32" (4mm) Steel with Laser Etched Guide Marks
Spark Guard Construction: Steel
Speed Adjustment: Lever Type on Housing
Trigger Type: Paddle with Safety
Exhaust: Rear
Blade Diameter: 3"
Blade Thickness: 0.05"
Blade Arbor Size: 3/8"
Blade Maximum RPM: 20300

Contents

(1) Eastwood Elite Panel Saw
(1) 14mm Offset Arbor Wrench
(1) 5mm Hex Key Arbor Screw Wrench
(1) 3mm Hex Key Guard Wrench
(1) 4mm Hex Key
(1) 2.5mm Hex Key
(1) 1/4” MNPT, Male Quick-Disconnect Inlet Fitting with Thread Sealant
(1) Lenox Diamond Cutting Wheel

• Powerful Heavy-Duty .5 Horsepower Motor - Operates with Only 4 CFM at 90 PSI
• Engineered for Optimum Performance with the use of a Diamond Blade
• Reversed Blade Direction Creates Clamping Action for Precise Tracking
• Straight, Plunge, and Scroll Cuts All in One Tool
• Handle Rotates 120 Degrees Around Base for Cutting in Tight Areas
