Edelbrock 5824, 1.150 Valve Springs 16Pk E-Street Heads Performance Racing

5824 by Edelbrock

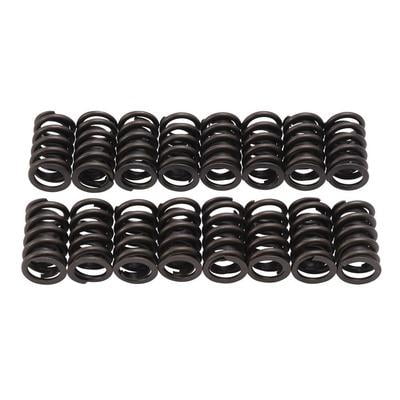

Valve Spring, Sure Seat, Single Spring / Damper, 1.150 in Coil Bind, 1.250 in OD, Edelbrock E-Street, Small Block Chevy / Small Block Ford, Set of 16

⬇️ Product details available below ⬇️

🚨 Product Attributes 🚨

• Product Line: Sure Seat
• Spring Style: Standard
• Spring Quantity: Single Spring
• Damper: Yes
• Spring Rate: 364 lb/in
• Coil Bind Height: 1.15 in
• Installed Height: 1.75 in
• Outside Diameter of Outer Spring: 1.25 in
• Inside Diameter of Outer Spring: 0.88 in
• Seat Load (LBS): 90 lbs
• Seat Load At (in): 1.75 in
• Open Load (LBS): 325 lbs
• Open Load At (in): 0.55 in
• Material: Steel
• Quantity: Set of 16

🚨 Product Dimensions 🚨

• Package Weight: 3.12 lbs
• Package Length: 13.7 in
• Package Width: 3.75 in
• Package Height: 2.5 in

🚨 Brand 🚨
The Edelbrock name has been a staple of the automotive performance industry since the 1940’s. With a product line that includes virtually everything under the hood, from individual components to complete engines, Edelbrock is one of the most recognized and trusted brands in the racing and performance world.

🛡️ Warranty 🛡️
This product is covered by a limited lifetime warranty against manufacturer defects by the brand.

[ IMPORTANT NOTES]

• No returns or exchanges once product has been installed on the vehicle.
• It is important to check/verify fitment prior to installation.
• If you have questions about the product or vehicle fitment, please use the Q&A section below, and reach out to us directly.

Specifications

Brand: Edelbrock
Manufacturer Part Number: 5824-PRT
Manufacturer: Edelbrock
