Electric Pipe Threader, 2300W Pipe Threading Machine Heavy-Duty Hand-Held Power Drive Kit Portable With 6 Dies 1/2-Inch to 2-Inch Pipe Threading Die Heads, Ratchet Pipe Threader Kit
Electric Pipe Threader, 2300W Pipe Threading Machine Heavy-Duty Hand-Held Power Drive Kit Portable With 6 Dies 1/2-Inch to 2-Inch Pipe Threading Die Heads, Ratchet Pipe Threader Kit
Low stock: 2 left
SKU:B0CCLD1979
Couldn't load pickup availability
Product description
Description
Our electric pipe threader is made of premium materials and fine craftsmanship, which gives it excellent performance. With its high-efficiency motor, automatic thread-feeding technology, wide applicability, and portability, it meets the needs of professional builders for efficient, accurate, and convenient pipe thread processing equipment. This quality machine will greatly improve your work efficiency.
Great Adaptability
Our product includes six kinds of standard dies, which can adapt to threading of various pipe diameters, greatly enhancing the versatility of the equipment.
Simple Operation
It is equipped with a built-in automatic thread-feeding mechanism, which enables the die to automatically and smoothly cut into the pipe during the threading process without frequent manual adjustments. This not only reduces the labor intensity of the operator but also ensures the uniformity and consistency of thread cutting. In addition, the equipped pipe clamp and fixed bar can also help you better complete the work.
High Safety
The self-locking button can quickly lock the power supply, and the 6.23ft long power cord keeps you away from the power source for safer and more reliable use. In addition, the forward/reverse button allows you to easily and safely reverse the threader after completing threading without causing any damage to the threads.
Details
- Heat Dissipation Holes: It comes with dense cooling holes to help the machine dissipate heat promptly, ensuring safety and extending service life.
- Carbon Brush Cover: The external carbon brush cover helps you to replace the carbon brushes more easily and prolong the life of the machine.
- Ergonomic Handle: The soft rubberized handle with a concave-convex pattern design is non-slip and comfortable to hold, so you won't feel tired even after long hours of work.
Specifications
Material: Aluminum, Carbon Steel, Rubber, Plastic
Motor Type: All-copper Motor
Voltage: 110-120V
Plug: US Standard
Max. Power: 2300W
Speed: 26r/min
Applicable Pipe Diameter: 20.9-59.6mm/0.82-2.35inch
Outer Pipe Diameter: 22,27,34,42,48,60mm /0.87, 1.06, 1.34, 1.65, 1.89, 2.36inch
Inner Pipe Diameter: 15,20,25,32,40,50mm /0.59, 0.79, 0.98, 1.26, 1.57, 1.97inch
Die Size: 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 inch
Power Cord Length: 1.9m/6.23ft
Storage Box Size: 56.5*28.5*13.5cm/22.24*11.22*5.31inch
Product Size(L*H): 53*19.5cm/20.87*7.68inch
Package Size: 57.5*31*14.5cm/22.64*12.2*5.71inch
Net Weight: 14.35kg/31.64lbs
Gross Weight: 14.85kg/32.74lbs
Notes
1.Please note that you should add the lubricating oil every time you use it.
2.Please allow the slight color difference caused by the shooting light and the 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

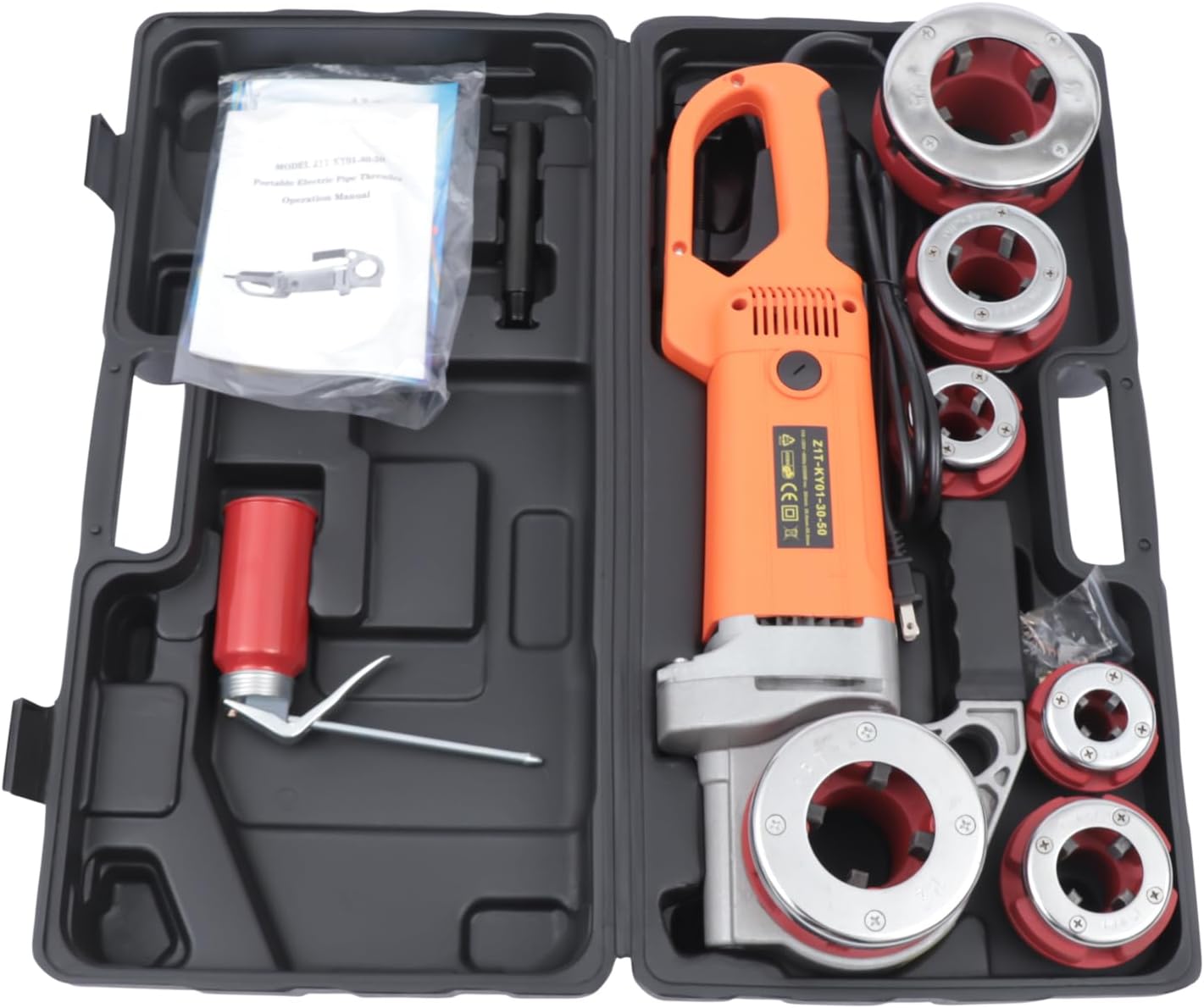

Package Included
- 1*Electric Pipe Threader
- 1*Oil Can
- 1*Pipe Clamp
- 1*Fixed Bar
- 2*Carbon Brushes
- 6*Dies
- 1*Storage Box
- 1*English Manual
Application
It can be used for threading in pipeline projects, electrical installations, and home renovations, as well as in special environments such as field work, aerial work, and confined spaces. It is suitable for threading all kinds of galvanized pipes, iron pipes, and steel pipes from 20.9 to 59.6mm.
