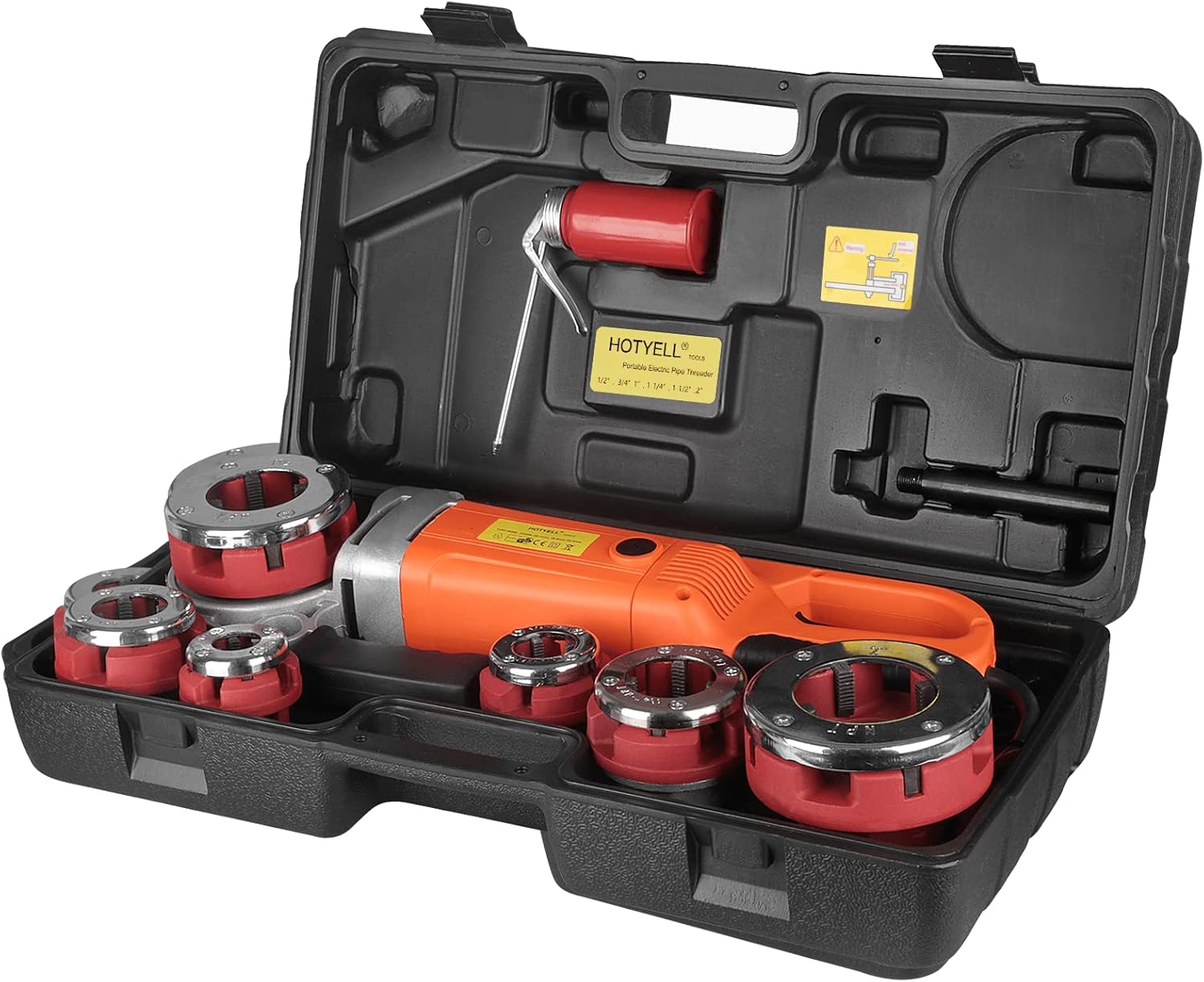

Electric Pipe Threader, Upgraded Pipe Threading Machine Uses Pure Copper Motor, Portable Handheld NPT Threader Kit with 6 HSS Dies 1/2"-2"
Electric Pipe Threader, Upgraded Pipe Threading Machine Uses Pure Copper Motor, Portable Handheld NPT Threader Kit with 6 HSS Dies 1/2"-2"
Low stock: 2 left
SKU:B0B8SJVHLB
Couldn't load pickup availability
Product description
The Most Reliable Tool Brand
Focusing on various tools for many years, providing high-quality products to customers around the world.
- This is the world’s benchmark pipe threader series.
HOTYELL Upgraded Electric Pipe Threader
Lighter, sharper and more durable
Five years ago, we launched the first generation of electric pipe threader, which are sold all over the world.
This year, we have upgraded the first-generation electric pipe threading machine in an all-round way, using 100% pure copper motor, upgrading the machine body and die heads from cast iron to aluminum alloy, and the dies from carbon steel to high-speed steel, 5.43 lb lighter, and is more durable and strong.
Our upgraded pipe threader machine has been widely praised by users.
- 100% Pure Copper Motor - Silicon lamination stator
- Aluminum Alloy Die Heads - 5.43 lb lighter than cast iron
- High Speed Steel Dies - Higher hardness than carbon steel
- 6 Brushes - More protection
- 6 Die Heads - 1/2", 3/4", 1", 1 1/4", 1 1/2" and 2"
Aluminum Alloy Die Heads
Included 1/2", 3/4", 1", 1 1/4", 1 1/2" and 2" NPT dies.
Threading range: 20.9 - 59.6mm.
Aluminum Alloy Machine Body
The all-aluminum alloy design is more portable and will never rust.
High Speed Steel Dies
It can maintain high hardness even when high heat is generated by high-speed cutting (about 500℃), and the HRC (High Rupturing Capacity) can be above 60.
100% Pure Copper Motor
Most similar products on the market use semi-copper motors (copper-clad aluminum). These motors generate more heat, so not durable, and the noise is at least 2 dB greater than pure copper motors.
6 Brushes
6 brushes provide you with more protection (2 have been installed in the machine), the brush is a universal model, if necessary, you can also easily buy it.
Wide Applications
The harder high speed steel dies make it more widely used, such as galvanized pipe, cast iron pipe, stainless steel pipe, copper pipe, and plastic pipe can be easily handled.
Specification:
Power type: AC power
Material: 100% pure copper motor
Specification: 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'' and 2'' NPT pipe dies
Threading range: 20.9 - 59.6 mm
Voltage: 110V AC
Plug type: US plug
Rated power: 2300 W
Rated spindle speed: 26 (r/min)
Net Weight: 33 lbs
Instructions:
1. After selecting the right position of the forward and reverse switch, you need to press the safety switch on the side of the handle and the button on the bottom at the same time to start working.
2. The clamp must be tightened to the pipe without any looseness, otherwise it will cause uneven threads and even damage the pipe threading machine.
