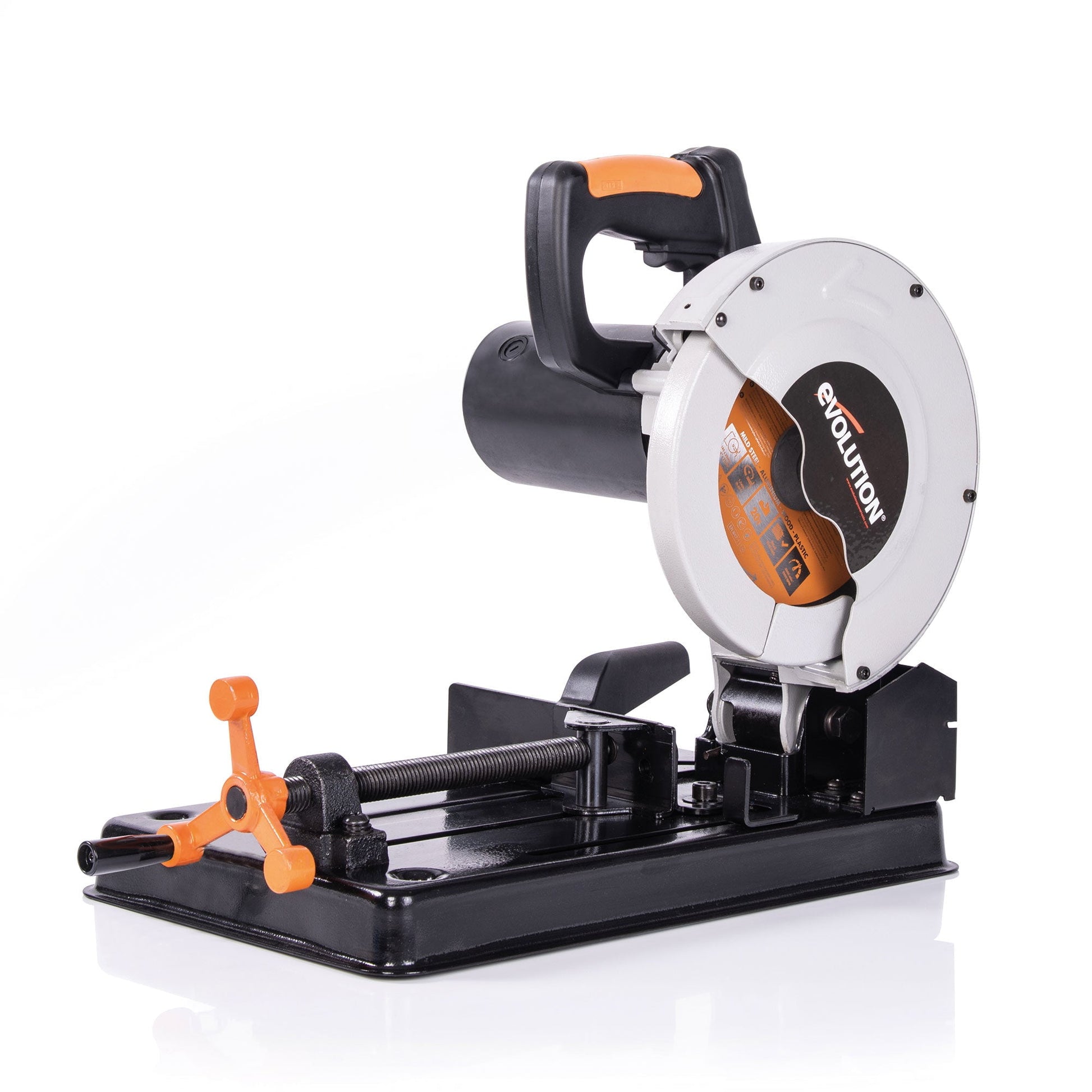

Evolution RAGE4: Multi-Material Cutting Chop Saw With 7-1/4 in. Blade

Features

The Evolution RAGE4 is a 185mm chop saw designed exclusively for Electricians and Plumbers. Producing fast, ultra-clean cuts through armored cable, Unistrut and cable tray, as well as conduit, chrome, copper & plastic pipe, plus plastic hose. Easier to use than a hacksaw, far more portable than a 14" (355mm) chop saw.

• Multi-Material cutting technology. One saw, one blade, cuts all.*
• Accurate cutting - cuts mild steel with ready-to-weld, clean & square cold-cuts.
• Unlike abrasive cutting, the RAGE4 TCT blade cuts steel with no harmful dust, no burrs & virtually no sparks, leaving an instantly workable finish.
• Reliable smooth square cutting every time in a variety of materials.
• Powerful 1250W hi-torque motor with optimized gearbox & blade system.
• Accurate & durable vice portability with 0˚ - 45˚ miter detents.
• A robust, durable base - ideal when handling heavy-duty, metallic applications.
• Lightweight, easy to transport, taking up little space, weighing only 9.1kg.
• Versatile, repositional fence for cutting of round, square & rectangle materials.
• Chip guard & dust extraction port for added safety & cleaner working environment.
• Compatible with the Evolution 185mm Diamond blade for cutting stone, concrete, and brick. (Sold separately).
• Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.
• 3 Year limited warranty.

Specifications

Motor (120V 60Hz):	10A
Speed No Load:	4200rpm
Max. Miter:	45°
Blade Spec
Blade Dia.:	7-1/4 in.
No. of Teeth:	20
Bore:	25/32 in.
Kerf:	0.066 in.
Cutting Capacities
Max. Cross Cut (0° x 0°):	1-3/4 in. x 3-3/4 in.
Max. Miter Cut (45° x 0°):	1-5/8 in. x 1-5/8 in.
Max Round Tube (0° x 0°):	2 in.
Mild Steel Plate (Max. Thickness):	1/4 in.
Mild Steel Box Section (Max. Wall Thickness):	1/8 in.

• 1250-Watt/10 Amp motor • 3500 RPM no load • 20mm blade arbor • Easier to use than a hacksaw and far more portable than a cut off saw • Includes 7-1/4 in. rage multipurpose cutting blade, 24 teeth • Optional specialty blade for masonry cutting available • Includes Evolutions 3 year limited warranty

Specifications

Brand: Evolution
Manufacturer Part Number: RAGE4
Manufacturer: Evolution Power Tools
Assembled Product Dimensions (L x W x H): 19.00 x 10.00 x 15.00 Inches
