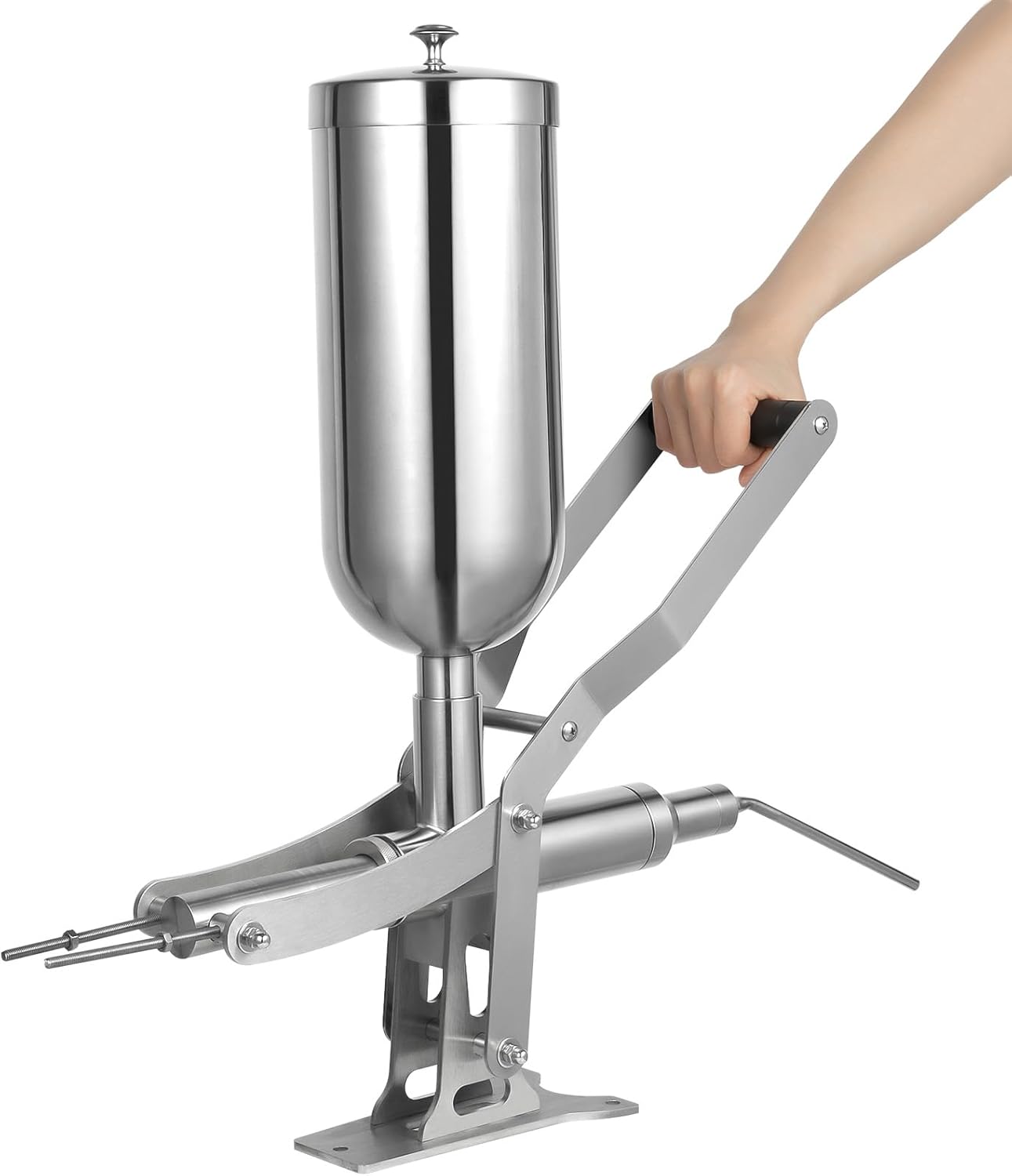

About this item

• Large Capacity: The large capacity hopper allows you to fill approximately 5L / 5.28 qt. of cream at one time, eliminating the need for frequent refilling and providing you with a more efficient work environment.
• Quantitative Filling: The tail screw allows you to adjust the amount of cream to be filled in a single batch. Filling accuracy is up to ± 1G, and the filling volume can be rationally adjusted according to the specific capacity of the filling dessert/container.
• Convenient to Use: Simply insert the filling nozzle into the donut and gently pull the handle to fill the cream into the donut. The manual control function allows you to control the adding amount freely. Equipped with 4 replacable anti-drip filling nozzles to meet your different needs.
• Sturdy and Durable: The liquid filler is constructed of high quality 304 stainless steel with excellent heat resistance (up to 248°F) so you can safely dispense hot toppings for food safety. Three screw holes in the bottom allow it to be screwed to a countertop for added stability.
• Widely Used: It is suitable for pastes and liquids with good flowability (no particles), such as cream fillings, jam fillings, paste fillings in kitchens, bakeries, restaurants, cafes, dessert stores and so on. It can also be widely used in pharmaceutical and cosmetic industries.

Details

Humanized Nozzle: The extended nozzle tilts downwards to allow the cream to flow fully into each part of the donut, making it fuller and more delicious.

Top Lid: It can prevent dust from entering and keep the cream fresh and clean inside the hopper.

Application

It is suitable for paste and liquids with good fluidity (no particulate matter), such as cream filling, jam filling, paste filling, etc. in kitchens, bakeries, restaurants, cafes, dessert shops, etc. It can also be widely used in industries such as pharmaceuticals and cosmetics.

How to Install

When you get this machine, most of the parts are assembled. You just need to assemble the hopper and nozzles.

1.Assemble the connecting rod with an M6 lock nut and washer.

2.Install two positioning rods with M6 lock nuts.

3.Choose a suitable nozzle and install it on a small funnel. Then install the hopper.

4.Finally, the entire filling machine is completed and assembled.

If you want a more precise filling volume, please install the rod of the dosing device(not included), and then tighten the nut.

Specifications

Material: 304 Stainless Steel

Color: Silver

Style: Modern

Surface Treatment: Brushing, Mirror Treatment

Assembly Required: Yes

Operation Type: Manual

Number of Nozzles: 4 (1 Long Nozzle, 3 Short Nozzles)

Capacity: 5L/5.28qt

Filling Weight: Min. 2g/0.004lbs

Filling Accuracy: ±1g/0.002lbs

Applicable Max. Temperature: 120°C/248°F

Gross Weight: 7.85kg/17.3lbs

Net Weight: 7kg/15.43lbs

Product Size: 60*65cm/23.62*25.6in

Base Size: 18*10.5cm/7*4.13in

Handle Length: 14cm/5.51in

Short Nozzle Length: 7.5cm/2.95in

Long Nozzle Length: 19cm/7.48in

Package Size: 58.5*33*19cm/23*13*7.48in

Package Included

1*Manual Donut-Filling Machine

1*Long Nozzle

3*Short Nozzles

1*English Manual

All Accessories for Assembly

Notes

1.Please carefully read the manual and strictly follow the precautions to have a better experience.

2.Please note that it is not suitable for particularly thick paste materials.

3.Please note that there should be no particles inside the liquid, as particles can cause machine blockage.
