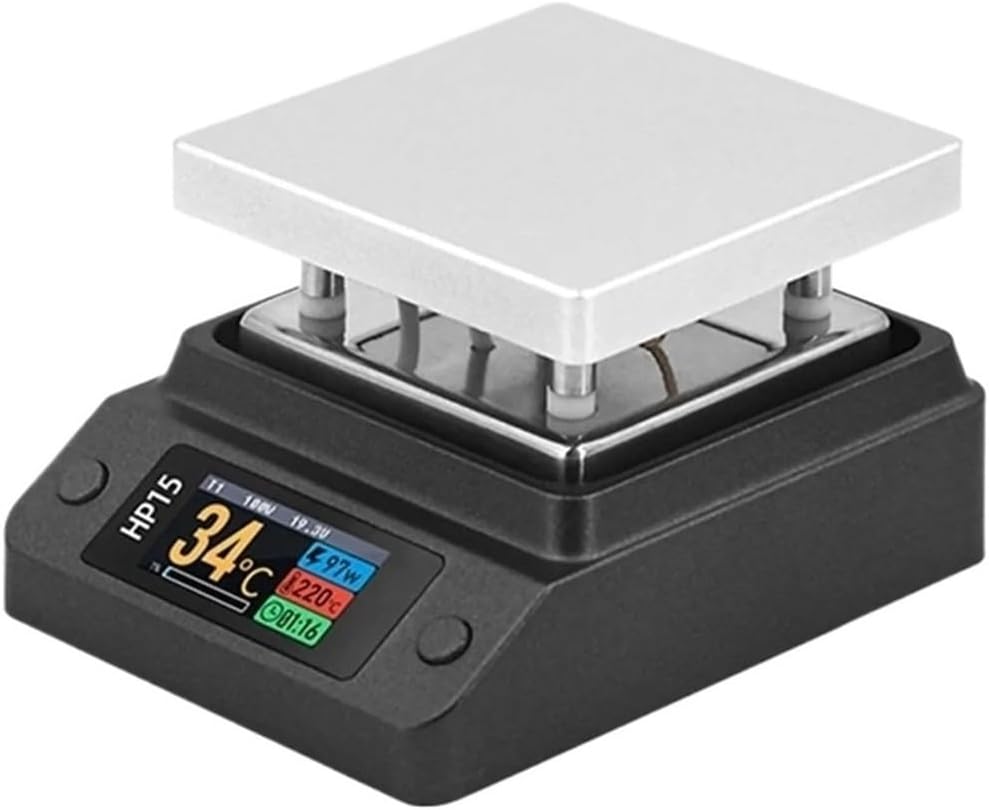

Mini Hot Plate SMD Preheater Preheating Rework Station PCB Board Soldering Desoldering Heating Plate Repair Tool(100W US SET)

• 1. High thermal conductivity, heat uniformity, fast heating, high temperature without deformation.
• 2.Simple structure body with an intuitive digital display design for space saving and easy operation, which can provide stable heating performance. It saves energy consumption and heating time.
• 3.Accurate and constant temperature is achieved through the use of a microcomputer chip, intelligent temperature control, quick and uniform heating.
• 4.The heating table is surrounded by a wrap-around design, heat insulation, and anti-scald, preventing accidental touching and scalding while working, safer to use.
• 5.Three-dimensional heat dissipation, fanless design, and the left and right holes speed up the air convection to achieve the perfect heat dissipation effect, prolonging the service time of the heating core.

5cm*5cm heating area, overall height 4.1cm, mini pocket size, suitable for more mobile desoldering application scenarios;
Split design, heating element and control end can be separated and replaced;
Built-in high-speed cooling fan, which can intelligently adjust the speed through temperature sensing to accelerate heat dissipation;
160*80 resolution color LCD display, clear and rich parameter display;
Built-in RGB true color lighting, the color of the light can change with the temperature, and the heating status is clear at a glance;
Dual-mode power supply: DC5525 power interface, can input 12-24V, the power can reach 150W; standard PD 20V power input, the power can reach 100W;
Multiple intelligent functions: preset temperature, anti-fall protection, brightness adjustment, firmware upgrade;
Purpose: A portable constant temperature heating station that can be put in your pocket, used for preheating, desoldering circuit boards, components, LED lamp beads, etc.
==========
Model Number : HP15 Hot Plate
Heating Area : 50mm*50mm
Temperature Range : 80-350°C
Temperature Stability : 3%
Power Input : DC 5525 12-24V / PD20V (Use only one input)
