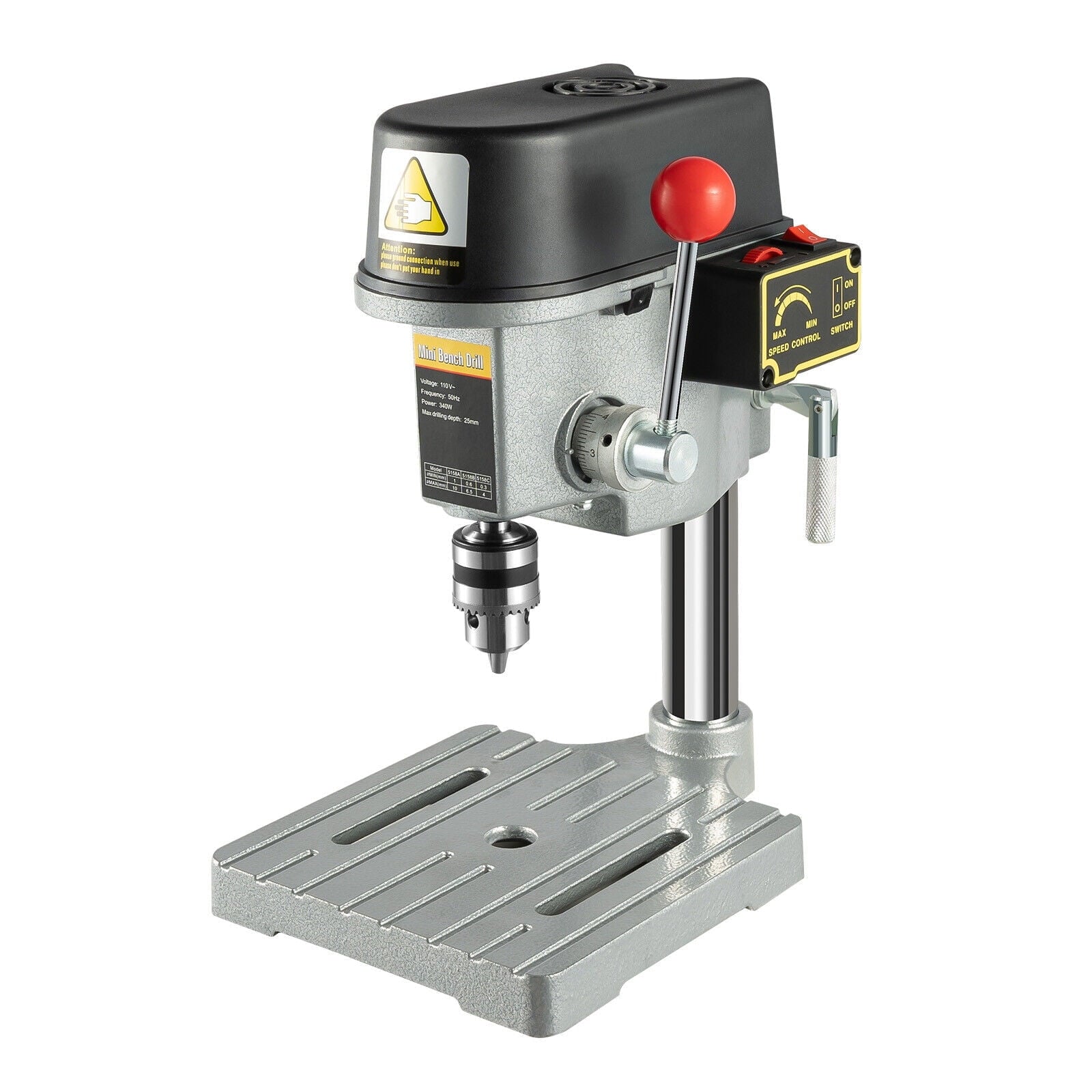

Portable 110V Drill Press Electric Mini Drill Press Bench Small Benchtop Drill Press 340W

Key Features

1. Compact Design: This mini benchtop drill press (9.45*6.7*9.84-15.16inch) offers most of the features that a large benchtop drill press can offer in a smaller size, saving you a lot of space in your shop and making a great addition to your workbench
2. Convenient to Use: The desktop design and the way of pushing the handle for operation are more time-saving and labor-saving. The 3.94-inch handle makes it easy for you to adjust the downward stroke according to different drilling needs. The height of the machine head can also be flexibly adjusted by the fixed handle, making drilling more convenient and easier to deal with different problems.
3. Stable Operation: The 1.18-inch large column and 0.98-inch thick base make the whole body not easy to shake, which can effectively enhance stability during operation.
4. Low Noise: The belt cover and all-copper motor minimize noise during operation and provide you with a comfortable working environment.

Specification

• Material: Cast Iron, Steel, Plastic
• Process: Spray Molding
• Voltage: AC 110V
• Rated Input Power: 340W
• Rated Frequency: 50/60Hz
• No-load Speed(RPM):
• I:0 -9650r/min
• II:0 -12150r/min
• III:0 -14100r/min
• Downward Stroke: 2.5cm/0.98inch
• Collet Clamping Diameter: 1-10mm
• Adjustable Height Range: 25-38.5cm/9.84-15.16inch
• Handle Length: 10cm/3.94inch
• Base Size: 24*17cm/9.45*6.7inch
• Column Diameter: 3cm/1.18inch
• Base Thickness: 2.5cm/0.98inch
• Power Cord Length: 1.4m/4.6ft

Package Included

• 1*Benchtop Drill Press
• 1*T-handle
• 1*Round Head Handle
• 2*Allen Keys
• 2*Carbon Brushes
• 1*Belt
• 1*English Manual
• Notes
• Please read the user manual carefully before use and pay special attention to the safety precautions included.
• Please allow a slight color difference due to shooting light, and a 1-3cm error due to manual measurement, please make sure you don't mind before ordering.
• Please refer to the speed listed in the description

• It is mainly suitable for small craft workshops for drilling and machining iron (≤6 mm), wood (≤16 mm), acrylic boards, plastic products, and so on. It can also be used for teaching experiments, home DIY, or furniture installation.
• Excellent Performance: The 340W all-copper motor provides stable and high power output, and when used with the high-quality steel collet, it can effectively improve your work efficiency and save time.
• High-quality Material: It is mainly made of high-quality cast iron and steel, and has undergone a spray molding process to have good wear resistance, ensuring that it can maintain good performance after long-term use.
• Three Speed Adjustable: It has a speed regulation function, the first gear is 0 -9650r/min, the second gear is 0 -12150r/min, and the last gear is 0 -14100r/min. It allows you to operate at a suitable and precise speed, which is more efficient and accurate.
• High-precision Drilling: The clear stroke scale allows you to accurately grasp the downward pressure height. Moreover, it has a collet clamping diameter of 1-10mm, which makes it easy to keep the collet stable during rotation and improves drilling accuracy.
