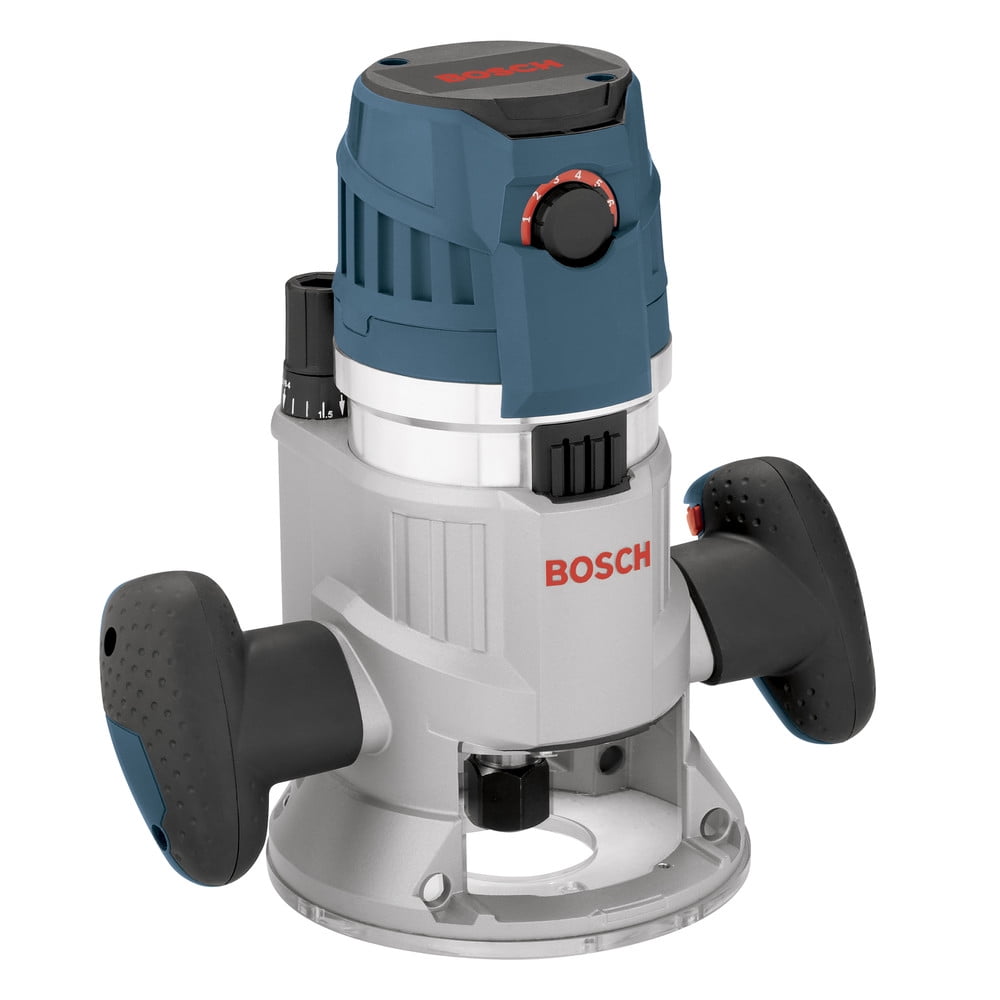

Restored Bosch MRF23EVS-RT 2.3 HP Fixed-Base Router (Refurbished)

The Bosch MRF23EVS is the only fixed base-router of any kind that has a trigger-controlled power switch in the base handle, so you don't have to reach up to a switch on the motor. This router includes a powerful 15 Amp, 2.3HP, 10,000 to 25,000 RPM (no-load) motor with a one-piece armature shaft for accuracy and long bit-shank capacity. In addition, the motor has LED lights to provide always-on, optimal lighting. The motor is held by the base using the Bosch-invented router quick-clamp system, allowing tool-free movement of motor. The MRF01 fixed base features a versatile depth adjustment system that allows for easy macro- and micro-fine adjustment with a 1-5/8” continuous microfine adjustment range. This base also has threaded holes positioned in common 3-hole pattern for mounting to an optional router table. Moreover, it features the ability to adjust the depth from above the table using the included T-wrench, so there is no need to buy an expensive after-market router lift. The MRF01 also has the Bosch Precision Centering Design that allows the subbase to be perfectly centered around the bit, which makes it easy to keep the bit on intended cut line when using jigs, templets, dovetail fixtures and similar guidance devices. The kit also includes 1/2 In. and 1/4 In. self-releasing collets and comfortable forged bit-change wrenches. The many optional Bosch router attachments allow you to easily assemble a complete routing system.

• Trigger-controlled power system with power switch in the fixed-base handle
• 15-amp, 2.3 HP motor
• 6 adjustable speed settings
• Variable speed controlled with dial
• Constant Response maintains constant speed for whole cut
• Micro bit-depth adjustment
• Continuous depth range of 1 5/8 inches
• Precision-centering design allows bit to be centered with sub-base
• LED lighting enhances visibility in bit area
• Soft-start function reduces start-up torque
• 2-stage quick clamp system
• Contoured soft handles
• Cord swivel
• No load RPM: 10,000-25,000
• Rating: 120V AC
• Includes: Fixed base, 1/4-inch self-releasing collet chuck, 1/2-inch self-releasing collet chuck, 16 mm shaft wrench, 24 mm collet nut wrench, T-handle hex height adjustment wrench, pack of 3 M4 screws for table mounting
• Subbase opening: 2 inches
• Base dimensions: 6-inch diameter and 3.75-inch base opening
• Weight: 9.6 pounds

""

Specifications

Features: Adjustable, Variable Speed
Brand: Robert Bosch
Manufacturer Part Number: MRF23EVS-RT-RB
Assembled Product Dimensions (L x W x H): 14.20 x 11.00 x 8.60 Inches
