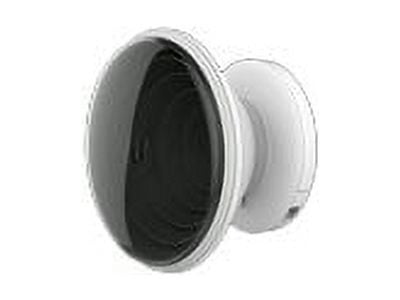

Ubiquiti Shielded airMAX ac Radio with Isolation Antenna

Ubiquiti Networks launches the latest generation of airMAX ac CPE (Customer Premises Equipment) with dedicated Wi-Fi management, the IsoStation™ 5AC.

Improved Noise Immunity

The IsoStation 5AC provides high isolation solutions in fixed beamwidth increments through interchangeable horn antennas that have been optimized for an urban environment. The tailored antenna radiation patterns spatially filters both in-band and out-of-band spurious RF emissions to increase the noise immunity of the IsoStation 5AC. This feature is especially important in an increasingly congested RF environment.

Modular Design

The interchangeable antenna improves beam-shaping for specific deployment needs. By default, the IsoStation 5AC includes the symmetrical horn antenna with 45° beamwidth.

Scalability

Horn antennas increase co-location performance without sacrificing gain.

Symmetrical horn antennas (30° and 45° versions) offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

Asymmetrical horn antennas (60° and 90° versions) are designed to have attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements

Extended Performance

A robust dish antenna, model U-OMT-Dish, offers excellent beam directivity with 27 dBi of gain. It can be paired with the IsoStation 5AC to extend radio performance for a greater number of WISP customers.

Providing high throughput and an innovative form factor, the IsoStation 5AC is versatile and cost-effective to deploy

Key Features and Benefits:

• Modular design
  The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStation also gets maximum gain out of the smallest footprint.
• Beam performance perfected
  The IsoStation can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.
• Enhanced Co-Location
  Asymmetrical horn antenna options (60������ and 90������)have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30������ and 45������, the default) are ideal for cluster sector installations with high co-location requirements.
• Improved noise immunity
  IsoStation blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
• Now with airOS 8
  airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

What's Included:

• Ubiquiti IsoStation ac IS-5AC
• Pole mount
